دبوس للسلك رقم 4 awg باللون الأحمر

KWD 8
اللونأحمر
مقاسدبوس للسلك رقم 4 AWG
– 1 +

مميزات خاصة

  • Package include: 2pc Interconnecting Housing (Grey), 4pc Silver Plated Copper Terminals (for #4 AWG wire)
  • Housing Dimension: 53.1*25.4*79.5mm/2.09*3.13*1inches
  • Suitable for Cable size: #4 AWG
  • Current: 175 Amps, Voltage: 600 Volts (Max)
  • Operating Temperature: -20 to 105 degree Celsius

وصف

Product Details
.......................................
Name: 1 Set 175Amp 2 Poles Power Connector Plug Red w/Terminals for #4 AWG Wire Anderson Compatible

Current: 175 Amps

Voltage: 600 Volts (Max)

Operating Temperature: -20 to 105 degree Celsius

Housing Gender: Genderless (housing can all connect to each other as long as they are same size and color)

Housing color: Red

Housing Material: Polycarbonate

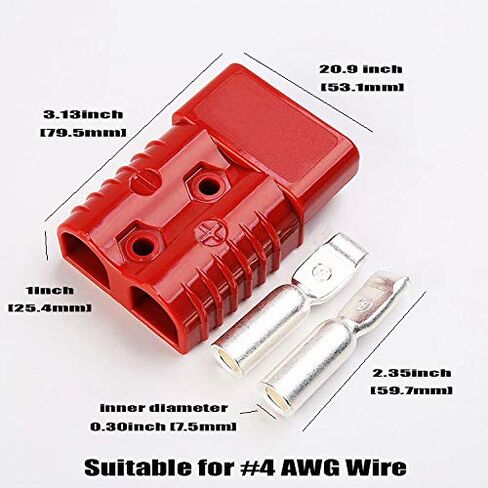

Housing Dimension: 53.1*25.4*79.5mm/2.09*3.13*1inches

Suitable for Cable size: #4AWG

Termination Type: Terminals can be either crimped or soldered to the cables

Contact/Terminal Material: Silver Plated Copper

Contact Retention Spring Material: Stainless Steel

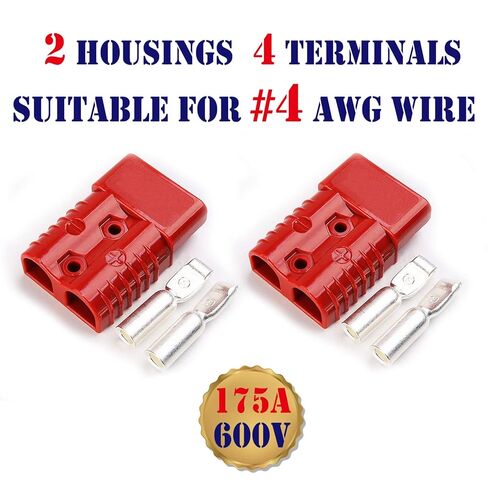

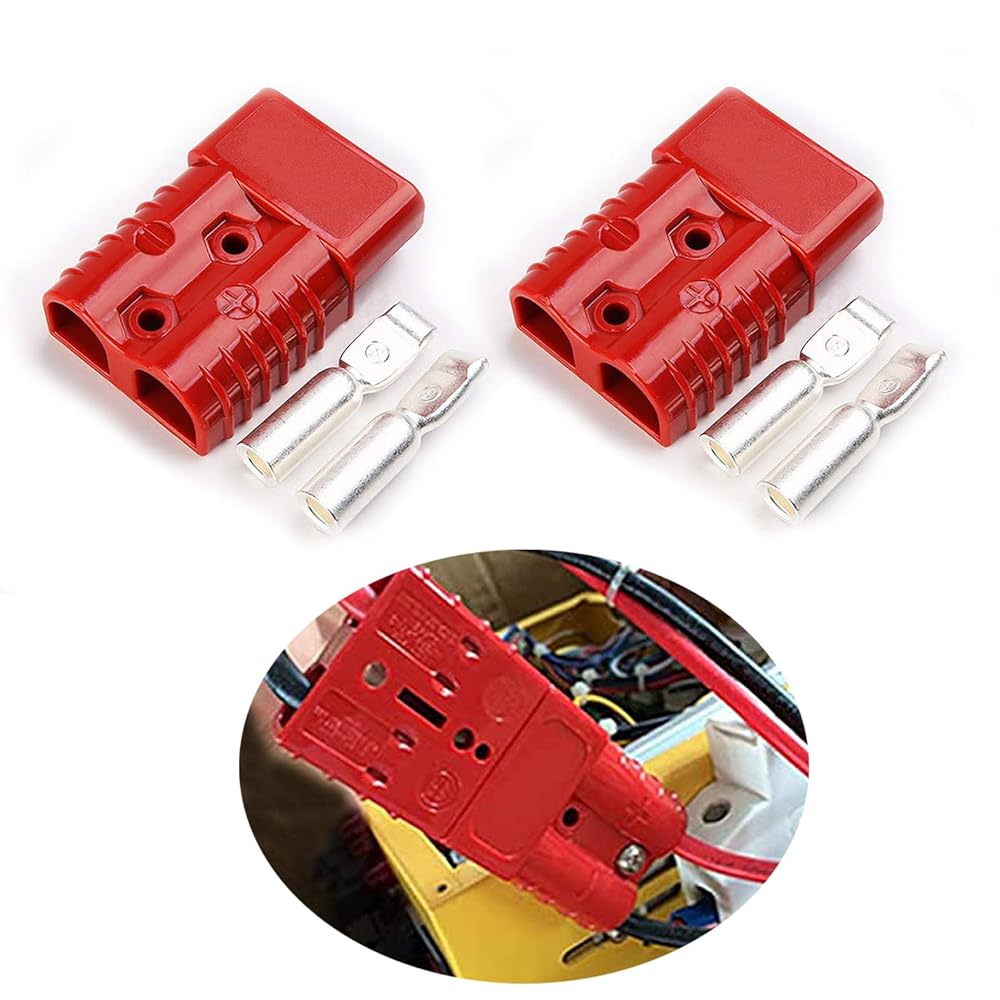

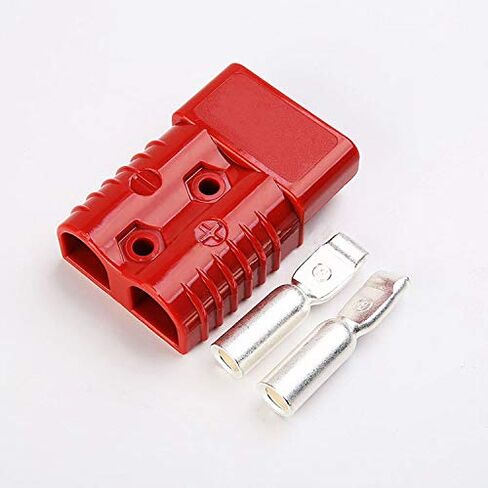

Package include:
2pc Interconnecting Housing (Red)
4pc Silver Plated Copper Terminals (for #4 AWG wire)
