HD V5 Screen 3.0 inch 15 Brightness 8 Color Build in OSD For GBA IPS Replacements LCD Kits,Drop-in Touch Control Black Glass Screen Lens Mod Kits, Fits original Shell

KWD 31.500
Brand
HISPEEDIDO
Weight
80 g
– 1 +

Special Features

  • 🌸720x480 display resolution HD LCD with embedded V5 PCB board. Integer scaling (The original GBA display resolution is 240x160). No any distortions.Wide view angle up to 178 degree. Same display size as the original LCD screen.

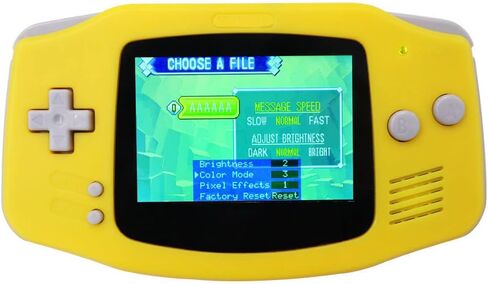

  • 🌸Built-in OSD Menu(*Required to weld 3 wires*). Touch control to change 15 levels brightness and long press to change the 8 color modes.

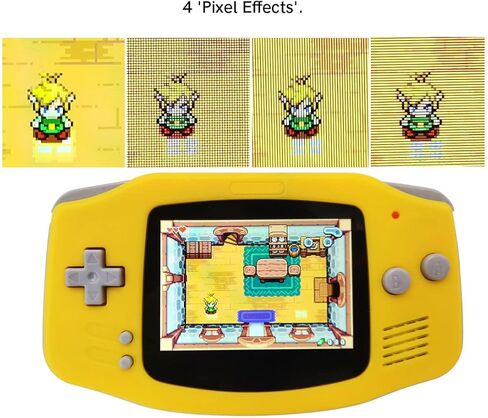

  • 🌸Retro pixel Effects(9 pixels to 1 pixel)-Normal, Retro pixel (like original AGS-101 LCD), Scanline 1, Scanline 2.
  • 🌸FRM On/OFF function(Frame blending On/OFF) is included. For some extremly few games, the image effect will be better when FRM turned on. For most games, No need to turn on FRM Function. The default FRM is OFF.

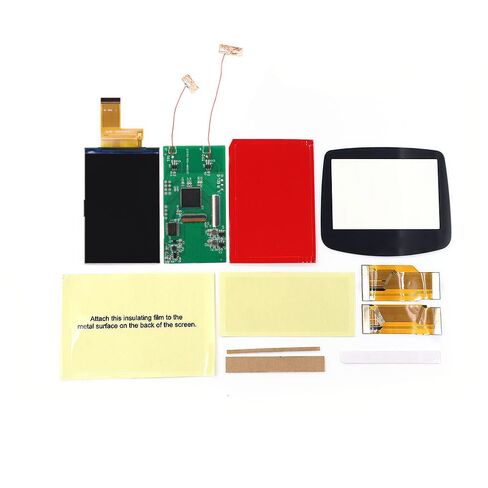

  • 🌸Compatible 32pin and 40pin motherboard. Good choice for replacing your screen on your console. Package includes:1* LCD, 1*PCB 1* Glass Len 2* Screwdrivers

Description

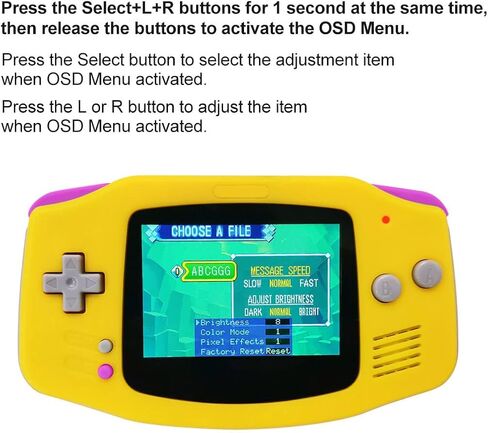

When you want to change the color mode, please long press the position of the touching control on the left head of the console and do not move your finger untill the color has been changed to the one you need. When you want to use the OSD menu, please press the L, R and Select Buttons at the same time for 1-2 seconds and then move your fingers to activate the OSD Menu. (3 wires need to be solded as the pictures) Use the SELECT button to up and down the arrow on the OSD. Use the L button to minus the OSD function levels and the R button to plus the OSD function levels.
