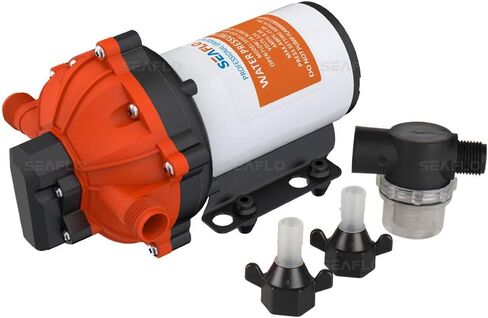

SEAFLO 55-Series Diaphragm Pump - 12V DC, 5.5 GPM, 60 PSI with Heavy Duty Pressure Switch | Self-Priming, Quiet Operation, 4-Year Warranty | Ideal for RV, Marine, and Off-Grid Water Systems

KWD 47.500
Brand
SEAFLO
MPN
SFDP1-055-060-51
Product dimensions
16 x 13.5 x 23 cm
Weight
2.8 kg
– 1 +

Special Features

  • 4-Year Warranty, if it doesn't have a 4 year warranty, it's not a genuine SEAFLO product!
  • 5.5 Gallons Per Minute (20.82 LPM) capacity flow, and 60 PSI pressure switch
  • Priming Capabilities 6 feet (1.8 m) suction lift, Inlet/Outlet Ports 1/2″-14 MNPT
  • 16 AWG, 4.5″ long with/Leads 2-Pin connector, includes 2 1/2" barbed fittings and 1 strainer
  • Current Draw: 8 Amp (max. 17 Amp), 5 chamber positive displacement diaphragm pump, self priming, capable of being run dry

Description

Features & Benefits: Positive displacement pump, Can run dry, Quiet operation, Demand Pump, Easy connect fittings, Industry standard mount pattern, Built-in thermal protection, Typical Applications: Agricultural Spraying, General Industrial, Automotive, Marine/RV, Type: 5 chamber positive displacement diaphragm pump, self priming, capable of being run dry Mode: Demand Liquid Temperature: 140°F (60°C) Max. Priming Capabilities: 6 feet (1.8 m) suction lift Max Pressure: 60 PSI (4.1 bar) Inlet/Outlet Ports: 1/2″-14 MNPT Weight: 7 lbs (3.17 kg) Duty Cycle: Continuous Leads: 16 AWG, 4.5″ long with/Leads, 2-Pin connector Voltage: 12v
