Specifications:
WS28:
Panel Hole Cutout Diameter: 28mm

Cable Outer Diameter: 16mm max
Coupling Type: Threaded, secure and quick connection
Shell Material: Zinc alloy with chrome plating. Corrosion resistance, oxidation resistance, long service life
Insert Material: Thermoplastic PPS max temperature 260℃
Contact Material: Brass with gold plating
Termination: Solder
Mating Cycle: >500 times
Temperature Range: -40~+85℃

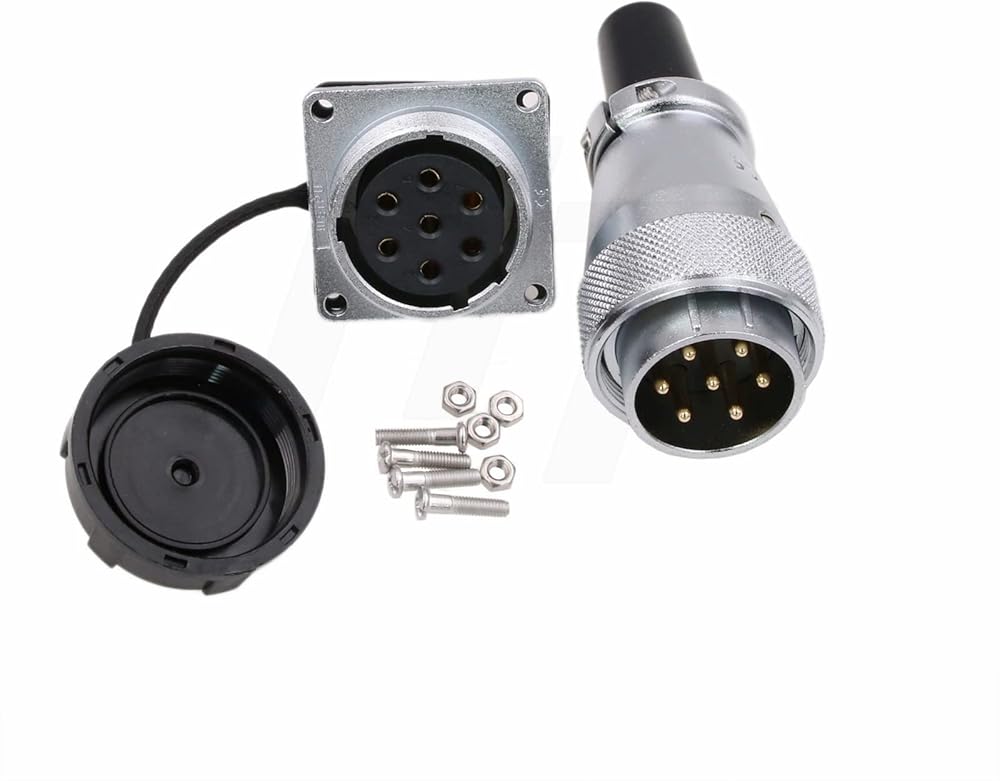

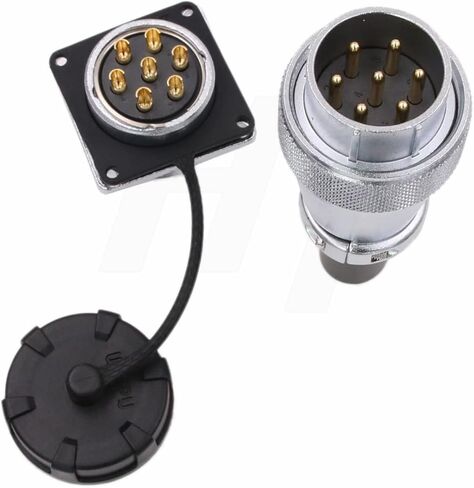

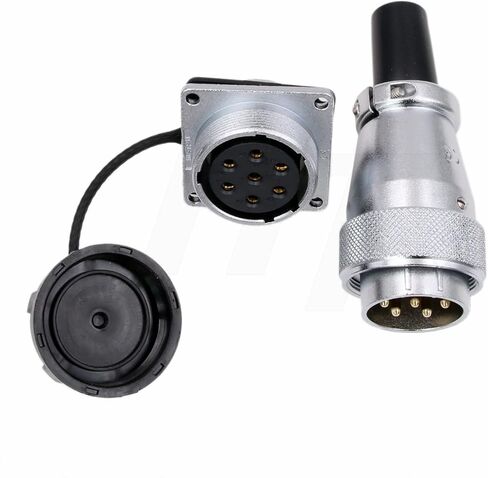

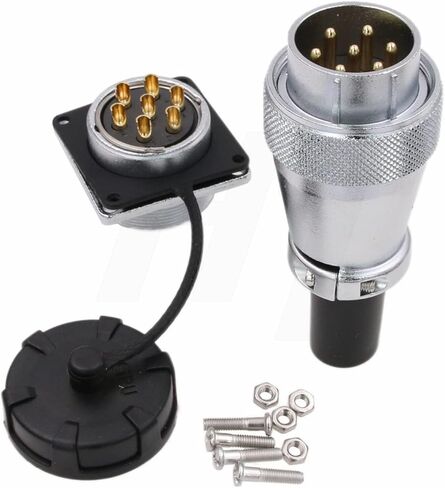

Package Includes:
1 x TQ Male plug with PVC sleeve
1 x Female socket square flange mount
1 x Dustproof Cap
4x screws

Features:
In the harsh environment the connector can provide safe and reliable connection.
WS28 metal aviation connector is ideal for data and power distribution in area of dust-proof, indoor / outdoor applications, such as outdoor electrical tools, industrial power supply, automotive portable power, medical device, communications,automatic equipment, led lighting, LED panels, solar power station, outdoor security cameras, transformer, control box, machines equipment, packing machines and more.
