Feature
Color: Yellow
Wire Length: 5.9-inch

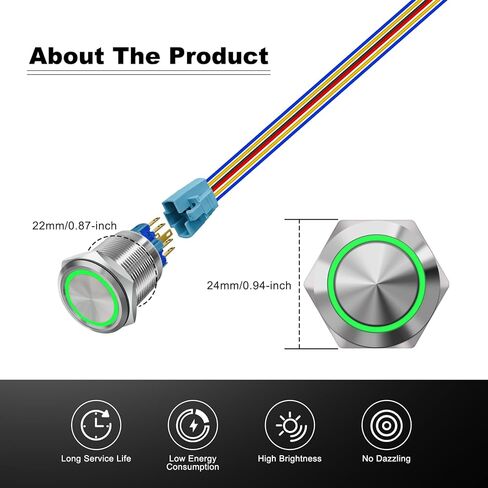

Mounting Hole Diameter: 22mm/0.87-inch

Wiring Method
1. With power on, device & button light on. Press once switch will be all off & press the switch again will be all on.
(1) The device positive connects red & yellow wires of switch.
(2) The device negative connects black wire of switch & power negative.
(3) The power positive connects yellow wire of switch.
(4) 2 remaining blue wires of switch are unconnected.

2. With power on, device & button light off. Press once switch will be all on & press the switch again will be all off.
(1) The device positive connects red & blue wires of switch.
(2) The device negative connects black wire of switch & power negative.
(3) The power positive connects blue wire of switch.
(4) 2 remaining yellow wires of switch are unconnected.

3. With power on, button light on & device on, press once switch, the button light on & the device off. Press the switch again, the button light on & the device off.
(1) The power positive connects red & yellow wires of switch.
(2) The power negative connects device negative & black wire of switch.
(3) The device positive connects yellow wire of switch.
(4) 2 remaining blue wires of switch are unconnected.

4. With power on, Button light off, device on. Press once switch, the button light on & device off. Press switch again, the button light off & device on.
(1) The power positive connects yellow & blue wires of switch.
(2)The power negative connects black wire of switch & device negative.
(3) The device positive connects yellow wire of switch.
(4) The blue wire of switch connects red wire of switch.
