Product Description

Name：RC-35 NC/NO Magnetic Reed Switch.

Feature:

Widely Used - This Recessed Door Contact Sensor works with any access control or burglar alarm system available.

Note - the Magnetic Door Switch must be installed according to the sensing distance. It can only provide a switch signal to the transmitter. It cannot directly load the power, nor directly connect the lamp!

Specification:

Model : RC-35.

Material: ABS.

Rated power: 10W.

Rated current: 500(mA).

Rated voltage: (VDC) 100.

Mounting Type: Recessed.

Anti-fire ABS shield Connecting mode: NC/NO.

Operating distance: more than 15mm, less than 25mm.

Switch Type: NO(normal open type), NO means Normally Open: when the magnet separate, the circuit is not conductive( light on ); When the magnet together, the circuit is conductive ( light ooff ).

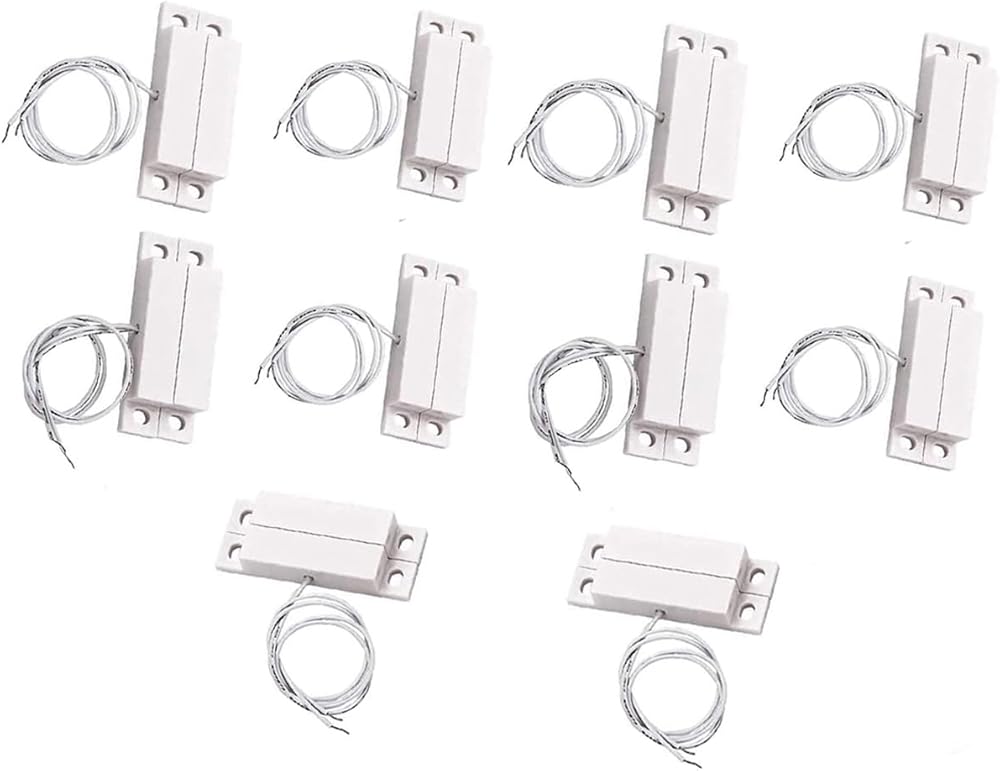

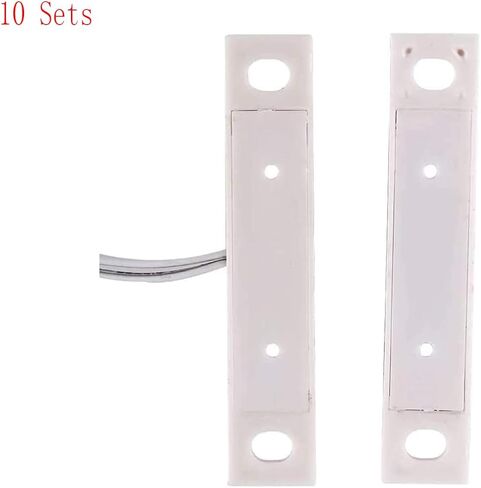

Package Includes: 10 Sets x RC-35 Magnetic Door Window Contact Sensor

Warm Tip:

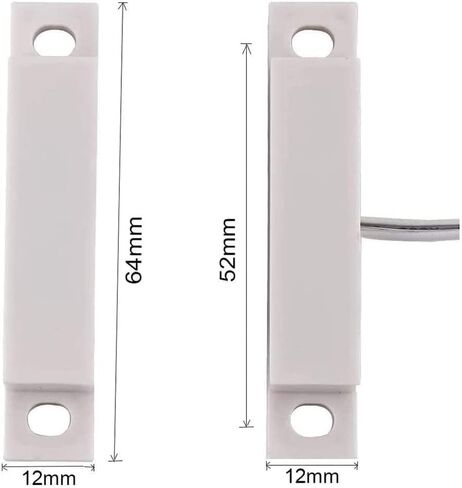

Due to manual measurement, there may be a slight error in size.

【Worry-free Warranty】:

With our 90-day money-back risk-free purchase guarantee, If you are not satisfied in any way, any quality problem can be refunded or replaced.
