DC 5V Micro 2-Phase 4-Wire Stepper Motor Linear Rail 48mm Stroke Linear Stage Actuator Lead Screw Slider Stepping Motor Small Electric Motor 18 Degree Step Angle
【Fine Design】: This rail and linear block are small and light, especially suitable for small teams. The tool is simple and easy to use, strong and durable.

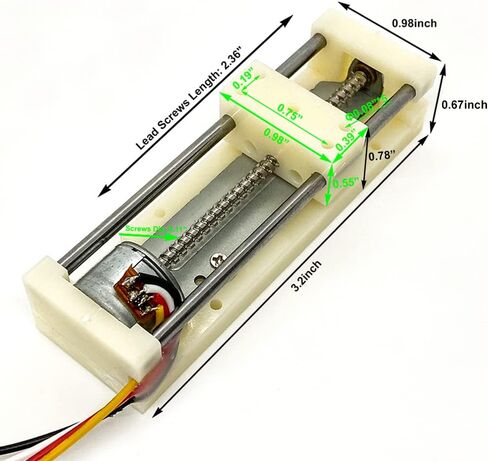

【Technical Data】: Drive Voltage: 5V-12V / 100-300mA; Step Angle: 18 degrees; Stage Total Size: 3.2"x0.98"x0.78" (including motor); Sliding Block Size: 0.98"x0.39"x0.55"; Motor Diameter: 0.59"; Motor Length: 0.43"; Lead Screws Length: 2.36" ; Lead Screws diameter: 0.11"; Effective Slide Stroke Travel: 1.89"; Wire length: 4.72".
【Note That】: This stepping motor direct power is not rotating, it need to stepper motor driver board. Search "B09BTWQPTB" to purchase it. Wiring method: Yellow A+, White A-, Red B+, Black B-.
【Application】: Stepper motor guide linear slide table can be used for DIY small slider projects, measuring equipment, laser printer, etc.
【Guarantee】: Our stepper motor are have 120 days warranty, if you have any question about this product, please feel free to contact us, we will try our best to help you solve your problem.
