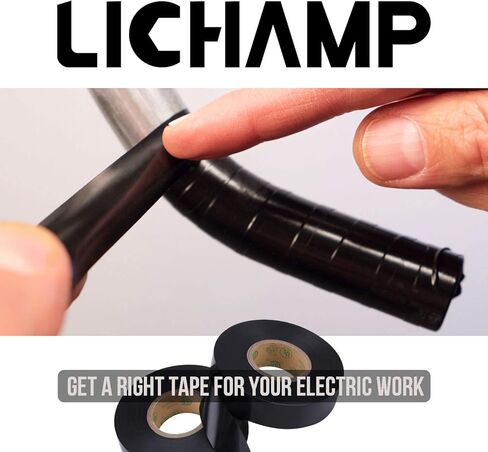

Lichamp 20-Piece UL Black Vinyl Electrical Tape Bulk, 3/4 Inch by 66 Feet (660 Total Yards), UL and CSA Listed, Adhesive for General Home Vehicle Auto Car Power Circuit Wiring

Applications:
Primary electrical insulation for all wire and cable splices rated up to 600 volts and 105°C (220°F).
Primary electrical insulation for 600 volt bus applications, and protective jacketing for low and high voltage bus.
Protective jacketing for high voltage cable splices and repairs.
Harnessing of wires and cables.

Typical Data / Physical Properties:
Material: Poly vinyl chloride (PVC)
Color: Black
Thickness: 7 mil
Width: 3/4 inch
Length: 66 feet x 20 rolls
Inner core size: 1.5 in.
UL and CSA Listed
Elongation: 240% min
Temperature Rating: 80°C (176°F)
Handling: –18°C (0°F)
Continuous Operation: 105°C (220°F)
Adhesion to Steel: 22°C (72°F): 28 oz./in.; –18°C (0°F): 60 oz./in.
Adhesion to Backing: 22°C (72°F): 25 oz./in. ; –18°C (0°F): 60 oz./in.
Breaking Strength: 22°C (72°F) 15lbs./in.
Ultimate Elongation: 22°C (72°F): 250%; –18°C (0°F): 100%

Electrical Properties:
Voltage Rating: 600V
Dielectric Strength: Standard Condition 8000V
High Humidity: 90% of std.
