Note
1) Some states of this product need to be installed by the customer.
2) There is no manual for this tester. Therefore, customers should have the relevant knowledge to purchase this product.
3) 32.768 kHz crystals cannot be tested.
4 When testing 48 MHz it shows 16 MHz using 3 frequency bars.
Packing List

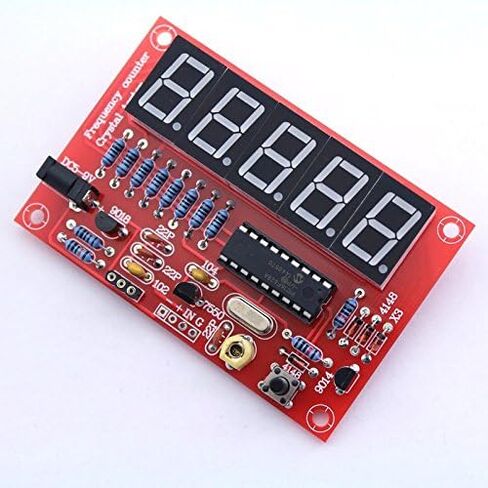

1) 1pc 80 x 55 mm PCB board
2) 5pcs 2.54 cm red LED digital tube 5161 as
3) 10pcs 1 K resistor
/> 4 ) 2 pcs 10 K resistors
5 ) 5 pcs 100 K resistors
6 ) 4 pcs set of 1 N4148 do-35 diode
7 ) 1 pc DC5 – 9 V power supply Connector
8 ) 1pc pic16 °F628
918pin socket adapter
10 ) 3pcs transistor ( 9108 9104 7550 1pc
11 ) 1pc 20 MHz crystal oscillator
12 ) 3pcs 22pf capacitor
13 ) 2pcs 104 33 MH inductance
14 ) 1pc switch
151pcs 3 pin 2.45 mm pitch
16 ) 1pc adjustable Capacitor (yellow)
