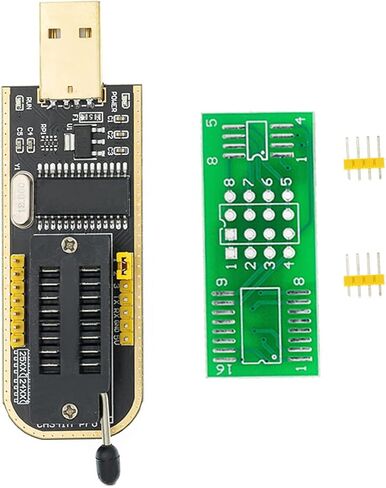

USB Programmer
Support 24EEPROM and 25 SPI flash 8pin/16pin chip
USB to TTL port
With CH341A chip
Recognize 25 series chip automatically
And support download STC series procedure of singlechip
With 24/25 status indicator lamp
SPI pin to support expanding the utility
Provide 5V-3.3V power supply output

200ML SOP8 chip and narrow 150ML SOP8 chip, one multi-purpose.
Instructions:
The clip clamps the chip, and a 3.3V voltage is applied to the clip pin corresponding to the 8th pin of the chip.
Generally, the 3.3V power supply has two wires, then the VCC corresponds to the clip, and the other wire can be directly grounded.

For all sorts of Color TV set memory (24 series IC), LCD (24.25 series IC), Desktop Motherboard (25 series IC) , Notebook (25 series IC) , Router (25 series IC), Card (25 series IC), DVD (25 series IC), Set-top boxes (25 series IC), Software to unlock, backup, erasing, burning, check.

SOP8 SOIC8 to DIP8 Adapter:
Pitch：1.27 mm
PINs：8 pin
Method of application：OPEN TOP
Insulation Resistance：1000mΩ Min DC 500V
Life Span(Mechanical)：15000Times
Temperature Rating：-55℃～155℃
Operation Force：＜0.9kg Max

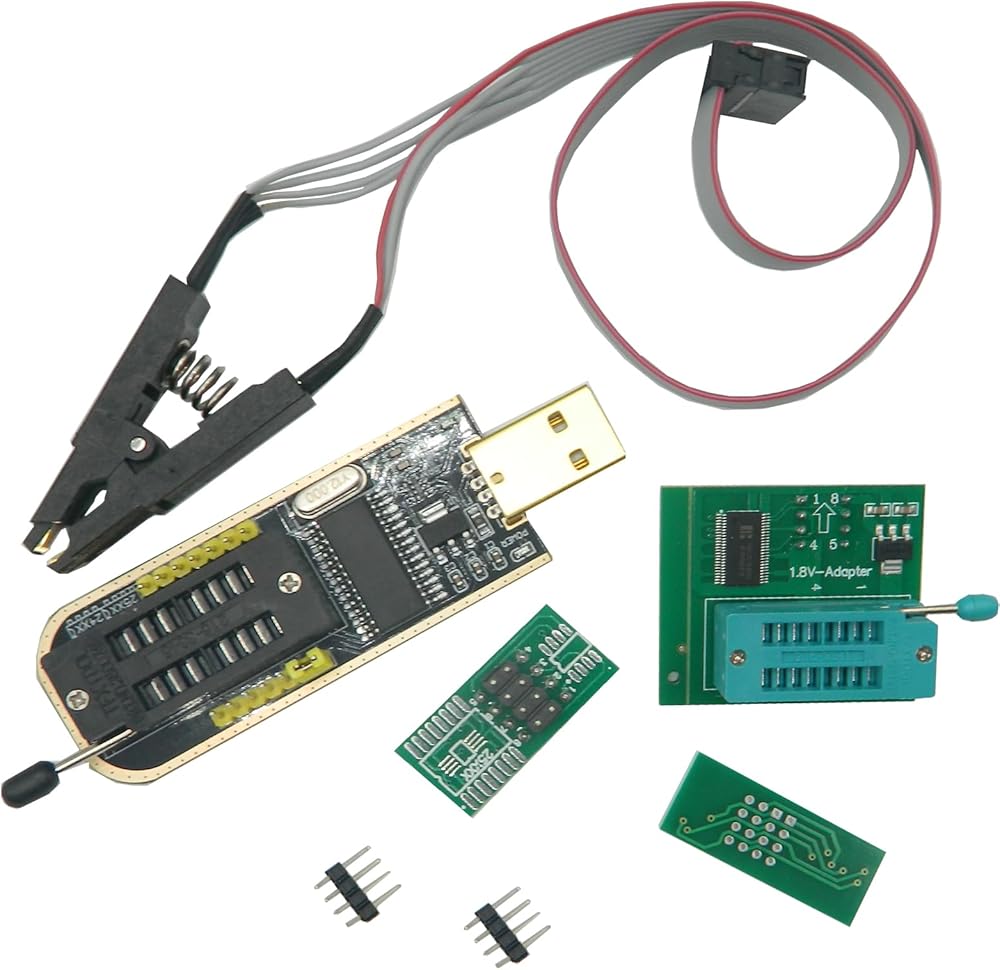

Package include:
1 x CH341A 24 25 series USB programmer
1 x SOIC8 SOP8 flash chip IC test clip
1 x 8pin to 8pin converter
1 x SOP8 SOP16 to 8pin converter
2 x 2.54mm 4pin header
1 x 1.8V adapter
1 x SOP8 SOIC8 to DIP8 programmer adapter
