The BTA16s issuitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits... or for phase control operation in light dimmers, motor speed Controllers
The snubberless versions BTA16 are specially recommended for use on inductive loads, thanks to their high commutation performances.
By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at 2500V RMS) complying with UL standards (File ref.: E81734)

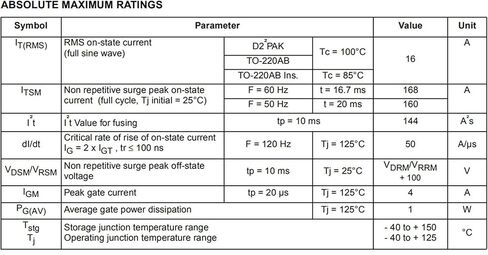

Peak Repetitive Off-State Voltage, Vdrm:600V
On State RMS Current IT(rms):16A
Gate Trigger Current Max (QI), Igt:50mA
Peak Gate Power:1W
Operating Temperature Max:125°C
Minimum Operating Temperature:-40 °C
Repetitive Peak Off-State Current:0.005mA
Dimensions:10.4 x 4.6 x 9.3mm
Package include:

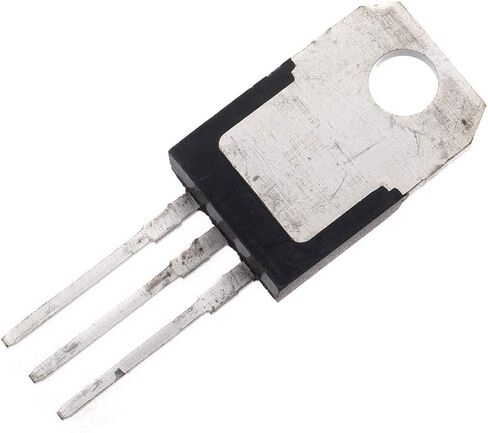

10pcs*BTA16-600B
