High Accuracy AC Current Transducer Transmitter AC 0-50A to DC 0-10V SZT15-CH-10V Self-powered Current Mutual Inductor

KWD 12
Brand
Walfront
Category
Sensors
– 1 +

Special Features

  • High accuracy: Mutual inductance current monitoring has high current detection accuracy and safe isolation of input and output.

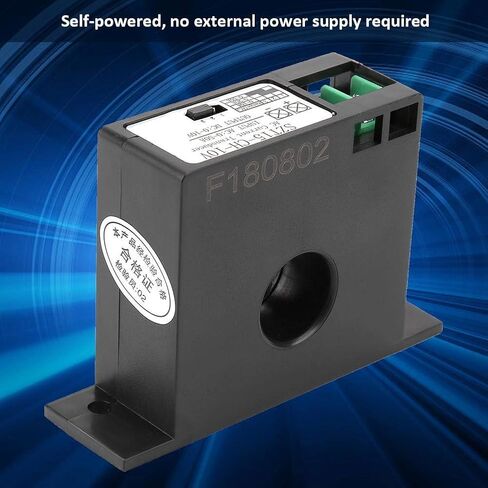

  • Self-powered: there is no external power supply required.
  • Easy to install: There is no need to connect DC into the circuit when measuring.

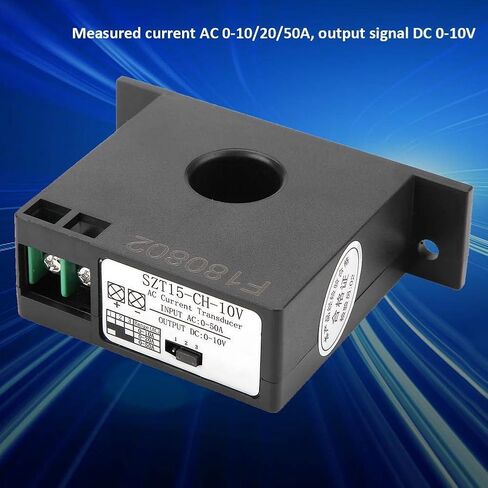

  • Current introduction: Measured current AC 0-10/20/50A, output signal DC 0-10V.
  • Straight-through structure design: The isolation withstand voltage is up to 2000V.

Description

Description:
This product is Suitable for AC current measurement and monitoring, AC monitoring, AC motor overload protection, electronic switch of automatic control system and so on.

Specification:
Model: SZT15-CH-10V
Supply power: Not required
Output type: 0-10V DC
Input straight-through current: AC 0-10A/20A/50A
Switch on minimum: 0.5±0.2A
Maximum overload of straight-through current: 200%
Accuracy: ±1%
Power consumption: ≤1W
Leakage current: ≤1mA
Hysteresis: ≤1%
Linearity: 10%-100%
Straight-through wire diameter: 0.35-20mm
Response time: ≤200ms
Withstand voltage: 2000VAC 50/60Hz 1min
Working environment: -20~60℃, 5-95%RH
Dimensions: 61.5*90*26mm / 2.4*3.5*1.0in
Hole diameter: 20mm / 0.8in
Package weight: Approx. 107g/3.8oz

Package list:
1 × AC Current Transmitter
