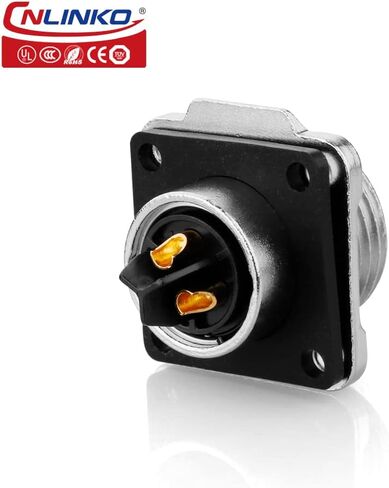

CNLINKO YW-20 Industrial Waterproof Connector IP67 Circular Connector Screw-in Locking Plugging Connector Anti-Interference Metal Shell Aviation Connector M20 2-14 Pin Flange Socket (2 Pin)

KWD 7

Size2 PIN

StyleYW-20 (M20)

All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.

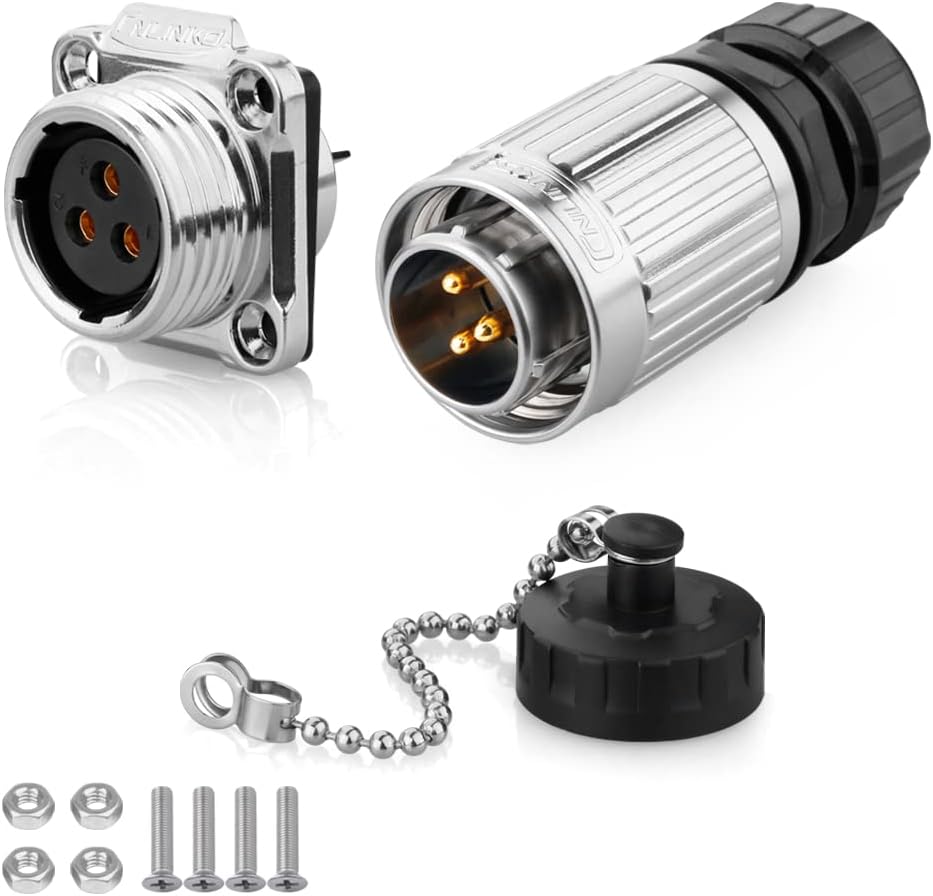

YW-20-C02PE-03-001 + YW-20-J02SX-03-401 ; Male Plug + Female Socket ; Connecting Mode: Plug/Unplug ; Protection Level: IP67(Mated) ;
【Standard】 Cable Specification(Power): 2.5-4.0mm2/14-12AWG ; Cable Diameter Range(Power): Ф9.0~Ф13.0mm ; Contact Diameter × Number: Φ2.7x2 ; Durability:≥500 Mating/Unmating Cycle ; Temperature Rating:-40°C ~ 80°C ; Assembly Style:Solder ;
【Specifications】 Rated Current: 20A ; Operating Voltage (AC.V.rms): 500V ; Withstanding Voltage (AC.V),1 Minute: 2000V ; Contact Resistance: <1.0mΩ ; Insulation Resistance: ＞500MΩ ; Prohibited To Charged Inserted ;
【Material】 Shell & Insulated Parts: Metal & High Performance Engineer Plastic ; Hard Metal: Zinc Alloy(Pearl Hard Chromium) ; Contact: Copper Alloy(Gold Plated) ; Sealing: Silica Gel ;
【Application】 Medical Equipment ; Server ; Electric Power Equipment ; Solar Energy Equipment ; The Smart Grid ; Communications Equipment ; Vehicle Equipment ; Ship Equipment ; Stage Equipment ; Heavy Machin ;
