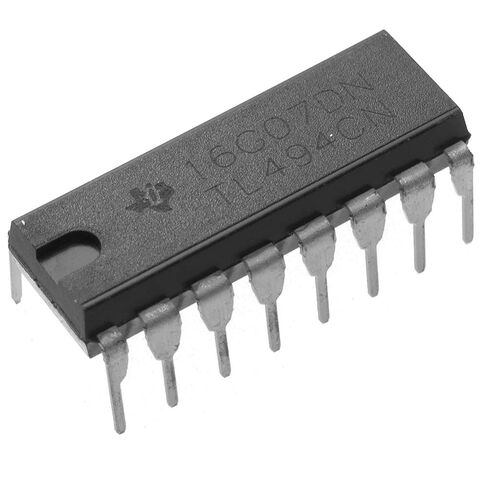

The TL494CN is a PWM Control Circuit incorporates all the functions required in the construction of a pulse-width-modulation (PWM) control circuit on a single chip. Designed primarily for power-supply control, this device offers the flexibility to tailor the power-supply control circuitry to a specific application.
The error amplifiers exhibit a common-mode voltage range. The dead-time control comparator has a fixed offset that provides approximately 5% dead time.
The on-chip oscillator can be bypassed by terminating RT to the reference output and providing a saw tooth input to CT or it can drive the common circuits in synchronous multiple-rail power supplies.
Minimum Operating Supply Voltage:7 V
Maximum Operating Supply Voltage:40 V
Minimum Operating Temperature:0 °C
Maximum Operating Temperature:+70 °C
Output Current:200 (Max) mA
Dimensions:19.3 x 6.35 x 4.57mm
Maximum Switching Frequency:300 kHz
Package include:
20pcs*TL494CN
