Dimension
Mounted Hole Size: 3. 3mm/0. 129"
Body Size: 59 x 15mm/ 2. 3" x 0. 6" (L * D)
Total Size: 82 x 21 x 17mm/ 3. 2" x 0. 8" x 0. 7" (L*W*T)

Reference Value
Power Rating: 100W
Resistance Value : 100 Ohm
Resistance Tolerance: ± 5 percent (J)

Package Content

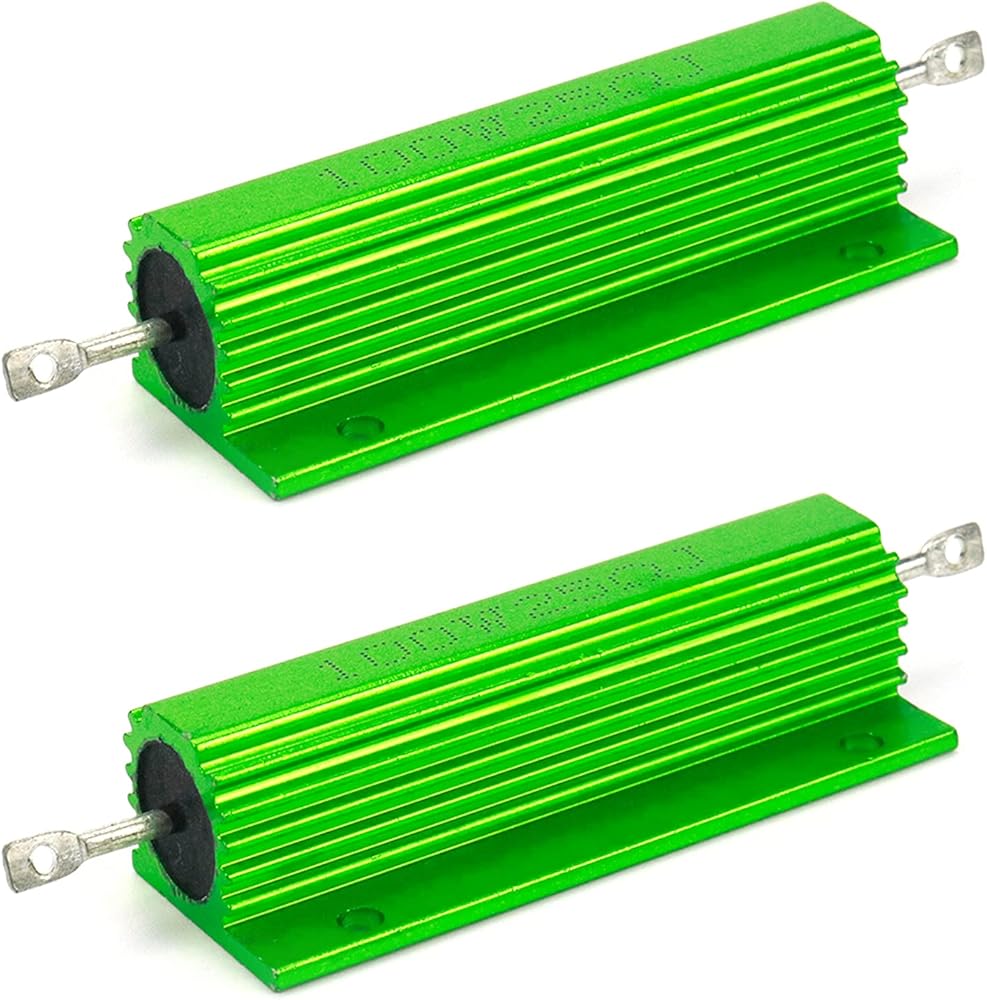

2pcs x Aluminum Housed Resistor

Applicable Range
Widely used in Power supply, Transducer, Elevator, Arena audio and high requirement equipment Industry

Product Features
High power load, non-inductive winding types, high insulating capacity, good performance in vibration.

Product Function

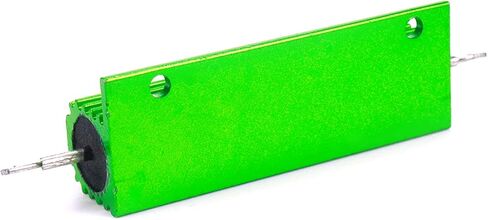

With screw holes which can tighten the resistor against a chassis or heat sink for greater heat dissipation.
