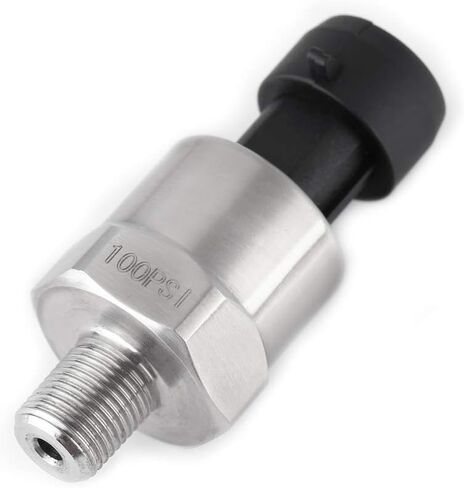

Pressure transducer works for oil, fuel, , gas, water, air pressure, can be used in oil tank, gas tank, tank etc.

Specifications:
Material: Stainless steel
Voltage: DC 5V
Pressure: 30 psi, 100 psi, 150 psi (Optional)
Accuracy: within 2% of reading (full scale).
Wiring: Red for +5V; Black for ground; Blue for signal output.
Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 15psi outputs 2.5V, 30 psi outputs 4.5V.
Accuracy: within 2% of reading (full scale).
Thread: 1/8"-27 NPT.

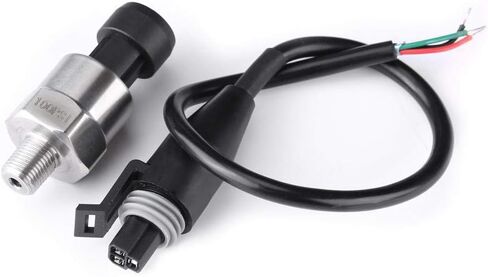

Wiring Connector: Water sealed quick disconnect. Mating connector is included.
Overload Capacity: 2-4 times of rated pressure
Working Temperature: -40℃~+120℃
Compensation Temperature: 0℃~+80℃
Protection Class: IP67
Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel
Load Resistance:≤(supply power-6.5V/0.02A)Ω
Long-term Stability: Less than 0.1%FS/year
Temperature Effect on Zero: Typical:0.02%FS/℃; Maximum:0.05%FS/℃
Temperature Effect on Sensitivity: Typical: 0.02%FS/℃; Maximum: 0.05%FS/℃
Shock Resistance: 1000g
Anti-Shock:≤+/-0.01%FS(X,Y,Z axes, 200Hz/g)
Response Time:≤1ms
Insulation Resistance: >100mΩ500VDC
Explosion-proof Class: ExiaTTCT6
Electromagnetism Compatibility: EN50051-1

Package Includes:
1 x Pressure
