Mega 2560 R3 Prototype Screw Terminal Block Shield Board Pre-soldered Kit, Breakout Module for Arduino UNO

KWD 7
Brand
ANMBEST
– 1 +

Special Features

  • The Mega 2560 Prototype Screw Terminal Block Shield Board is an accessory for the Arduino Mega 2560 microcontroller that provides a convenient way to connect external wires using screw terminals.
  • No Welding Required: The Mega 2560 Proto Screw Shield is Pre-soldered. It can be used for prototyping and experimenting with electronic projects to connect external wires without the need for soldering.

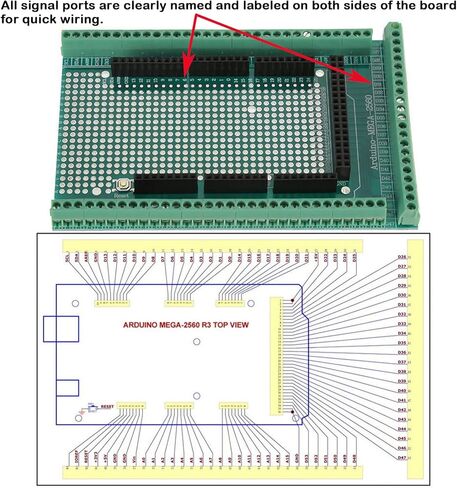

  • All signal ports are clearly named and labeled on both sides of the board for quick wiring.
  • Terminal Block: Pitch 3.5mm / 0.138" mini terminal blocks, total 85 pins(3pole x25pcs, 2pole x5pcs ). Wire range 26~16AWG, strip length 5mm.
  • Female Header Socket: Pitch: 0.1"/2.54mm; Pin length: 15mm / 0.59"; 1PCS Single row 10pin; 5PCS single row 8pin; 1PCS dual row 18pin.

Description

The Mega 2560 Prototype Screw Terminal Block Shield Board is an accessory for the Arduino Mega 2560 microcontroller that provides a convenient way to connect external wires using screw terminals. This shield board can be used for prototyping and experimentation with various electronic projects.
Specifications:
PCB:
FR-4 fiber glass PCB, dual copper layers, size 120mm x 78mm
Pads grid / pitch 2.54mm / 0.1", hole diameter 0.8mm
Terminal block pitch 3.5mm / 0.138", hole diameter 1.2mm
Terminal Block:
Pitch 3.5mm / 0.138" mini terminal blocks, total 84 pins(3pole x24pcs, 2pole x6pcs )
Wire range: 26~16AWG
Strip length: 5mm
Screws M2 steel
Pin header and cage brass
Female Header Socket:
Pitch: 0.1"/2.54mm
Pin length: 15mm / 0.59"
1PCS Single row 10pin
5PCS single row 8pin
1PCS dual row 18pin
Package included:
1x Pre-Assembled Mega 2560 R3 UNO Prototype Screw Terminal Block Shield Board Kit
