uxcell Synchronous Motor AC 100-127V 0.9-1.1RPM 50-60Hz CCW/CW 4W D Shaft

KWD 6.500
Brand
uxcell
Category
Electric Motors
Weight
95 g
Style0.9-1.1RPM
– 1 +

Special Features

  • [Specification] - Voltage: AC 100-127V; Speed: 4-5RPM; Frequency: 50-60Hz; Power: 4W; Direction: CW/CCW; Torque: 6 kgf.cm; Wire Length: 40cm/ 15.7 inch.
  • [Typical Applications ] - heater machine / electric fan / Christmas tree / Air conditioner / Massagers / Dynamic Visualizer / Arts & Crafts lighting / popcorn machine.
  • [Show Your Style] - An Good Motor For Hand-Made, DIY Project, Model And Anything Else You Want.
  • [Features] -AC motor is small power consumption, torque, low noise, small size, light weight, easy to use.
  • [Advantage] - The permanent magnet synchronous motor and the slowdown in one body can control the pros and cons of the synchronous motor.At rated frequency, the motor speed is not affected by voltage and remains stable. If the motor is overloaded or stalled, the motor coil will not burn.

Description

Description
It is mainly used for gluing machine, heaters, monitor, electrical curtain, stage lights, advertisement electrical movement, electrical apparatus, science and education instruments.
Typical Applications: desk, Automatic Equipment, Electric-drive devices.

Specification

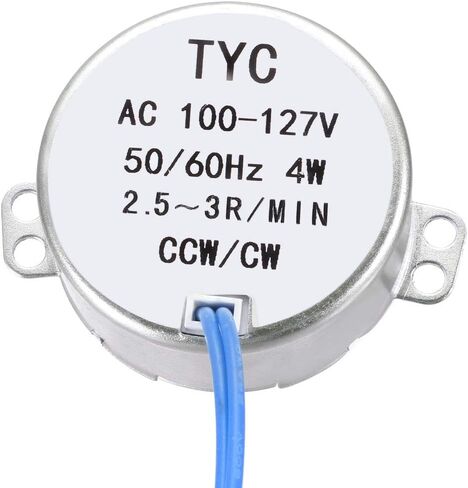

Rated Voltage: AC 100-127V
Power: 4W
Manner of Working: CW/CCW
Rated Frequency: 50-60Hz
Rated Speed: 4-5RPM
Torque: 6 kgf.cm

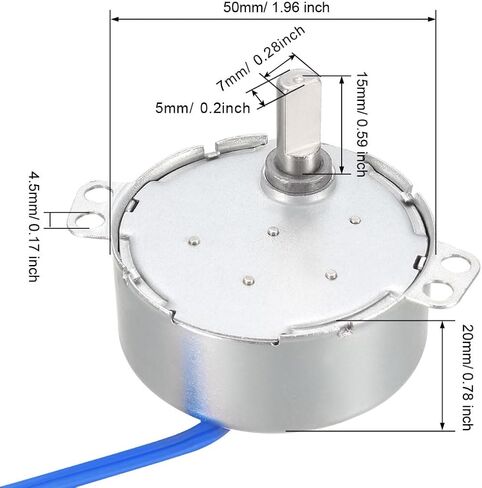

Body Diameter: 50mm/ 1.96 inch
Body Height: 20mm/ 0.78 inch
Total Length: 65mm/ 2.55 inch
Mounting Hole Diameter: 4.5mm/ 0.17 inch
Shaft Diameter: 7mm/ 0.28 inch
Shaft Length: 15mm/ 0.59 inch
Wire Length: 40cm/ 15.7 inch
Package: 1 x AC Synchronous Motor
