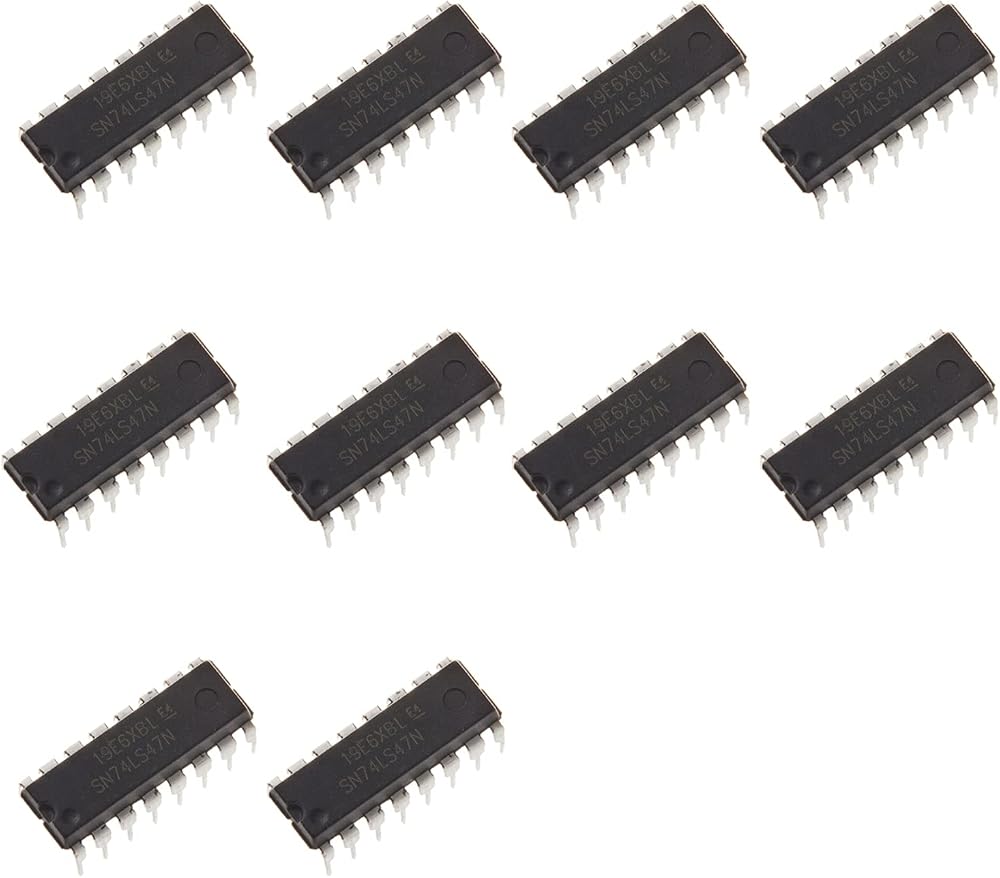

10pcs SN74LS47N 74LS47N 74LS47 74LS BCD to 7-Segment Decoder/Driver Demultiplexer for Digital Tube Display,16-Pin PDIP

KWD 4
Brand
Bridgold
Weight
12 g
– 1 +

Special Features

  • Blanking input/ripple-blanking output and ripple-blanking input
  • High sink current outputs for driving indicators directly
  • Circuits accept 4-bit binary-coded-decimal (BCD)
  • SN74LS47 incorporates automatic leading and/or trailing-edge zero-blanking control (RBI and RBO)
  • Products are quality controlled and quality guaranteed, please rest assured

Description

74LS47 is a BCD-7 segment digital tube decoder / driver. The function of 74LS47 is used to convert the BCD code into a number in a digital block. After decoding, the number can be directly converted into a digital tube display number, thereby simplifying the program.
This saves the IO overhead of the microcontroller. So it is a very good chip.
Package Type:PDIP
Pin Count:16
Logic Function:Decoder
Package include:
10pcs * 74LS47N
