Attention:

1) Kindly note 9V power supply included.

2) Pls use power supply adapter to give enough voltage to the device, or it cannot power on it or screen flickering, the adapter need "+" inside, " -" outside ( Center is Positive pole, Outside is negative pole )

3）Carton package

Pls contact us if need support from us. We will reply within 24hours, replace a new product or give you fully refund if you wish. thank you!

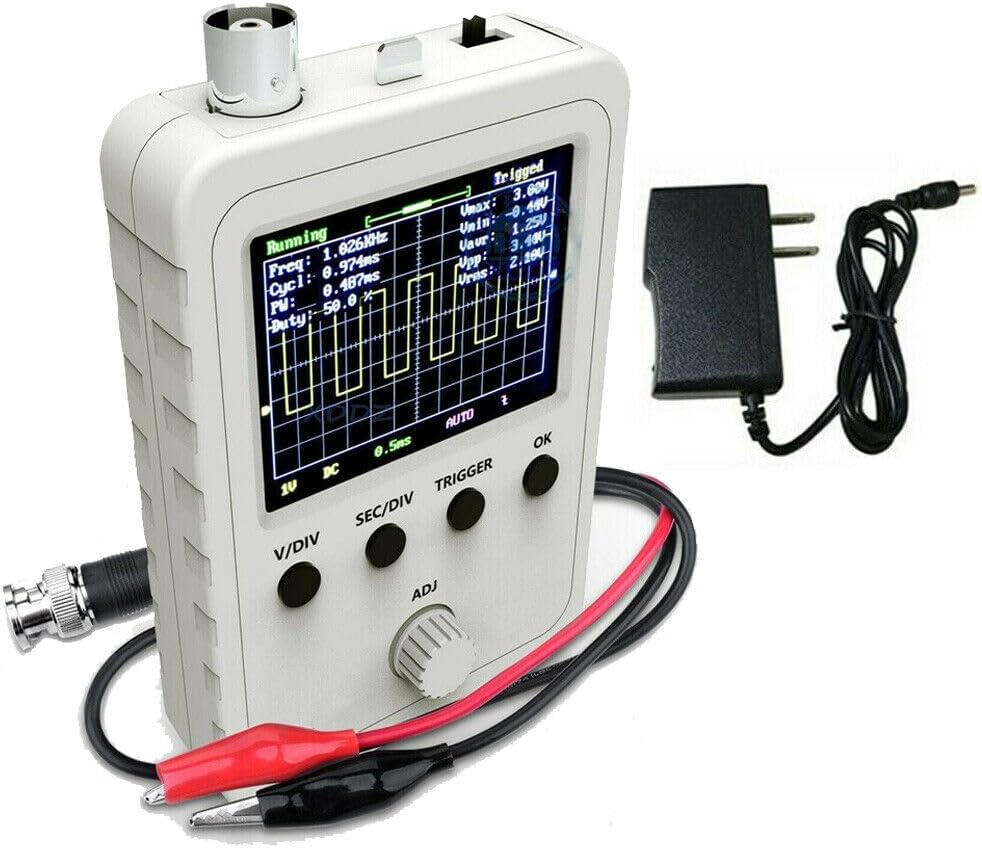

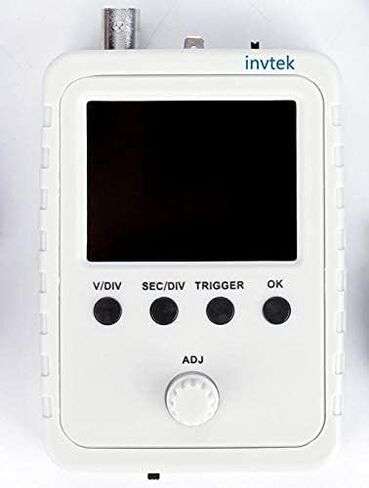

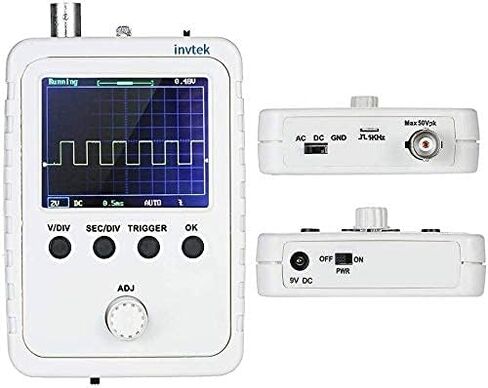

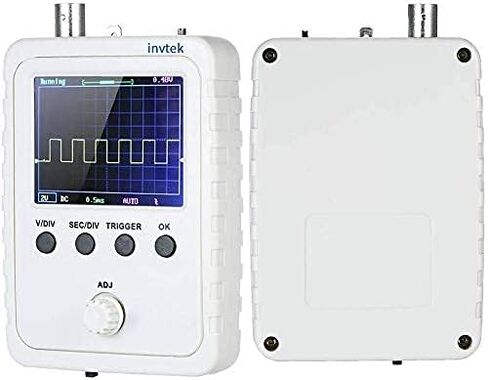

This is fully assembled DSO Shell oscilloscope, upgraded product of DSO138. With new design and it offers more accurate and reliable measurements. 5mV/div sensitivity and low background noise make the device particularly useful for measuring weak signals. Come with a very detailed instructions and a probe to get you started easily. Require 9V DC power supply with 5.5mm (2.1mm center) jack and included here.

Features and specifications:
Maximum real-time sampling rate: 1 MSa/s
Analog bandwidth: 0 - 200 KHz
Sensitivity range: 5 – 20 mV/div
Maximum input voltage: 50 Vpk (1X probe)
Input impedance: 1M ohms/20pF
Accuracy: 12 bits
Record length: 1024 points
Coupling modes: DC / AC / GND
Time Base Range: 500s/Div – 10us / Div
Trigger modes: Auto, normal, and single
Trigger position: Center of buffer
Supply voltage: DC 9 V (8 – 10 V)

Current consumption: ~120 mA @ 9 V
Main board size: 94 x 65 mm (3.7 x 2.56 in)
Analog board size: 65 x 47 mm (2.56 x 1.85 in)
Screen size: 52 x 40 mm (2 x 1.57 in)
Package size: 14.5 x 10 x 3.7 cm (5.7 x 3.94 x 1.45 in)
Package weight: 179 grams (6.33 oz)

Package include:
1 x Fully Assembled Digital Oscilloscope
1 x User Manual (English)
1 x BNC Clip Probe
