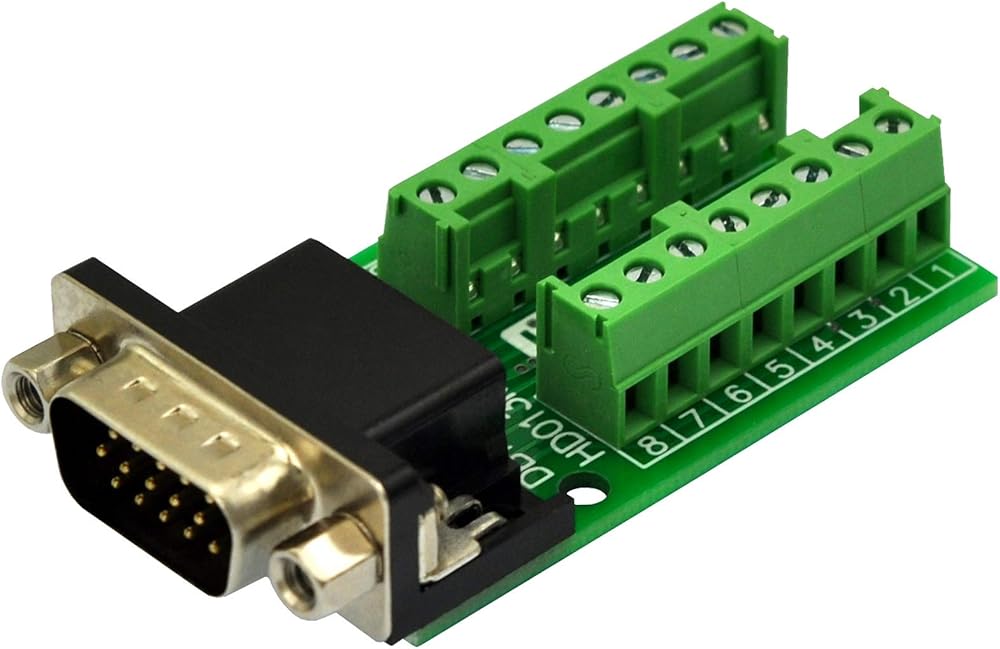

Slim Right Angle D-SUB Header Breakout Board Terminal Block DSUB Connector Module (DB15HD Female)

KWD 5.500
Brand
HCDC
Weight
28 g
StyleDB15HD Female
– 1 +

Special Features

  • Standard D-SUB Male or Female header connector. Connector and screw terminal 1:1 connects for per line.
  • Rated voltage: 60V. Rated current: 1Amp / per pin. Operating Temperature: -20C to 50C
  • Terminal block: Pitch 3.81mm/0.15" miniaturization screw terminal block. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass.
  • FR-4 fiber glass PCB, dual copper layers.

Description

1, Standard D-SUB male or female header connector. Connector to screw terminal 1:1 connects for per line.
2, Rated voltage: 60V. Rated current: 1Amp / per pin. Operating Temperature: -20C to 50C
3, Terminal block: Pitch 3.81mm/0.15" miniaturization screw terminal block. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2, steel, Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass.
4, FR-4 fiber glass PCB, dual copper layers.
