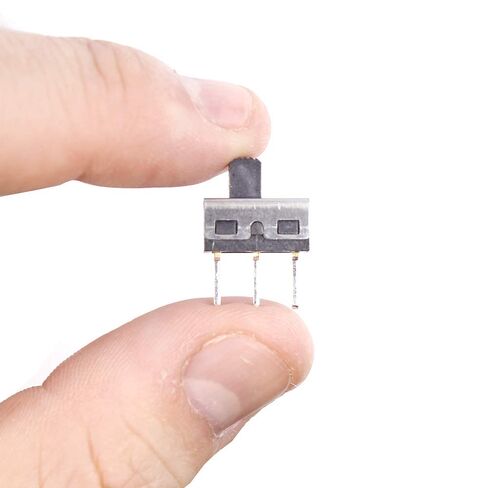

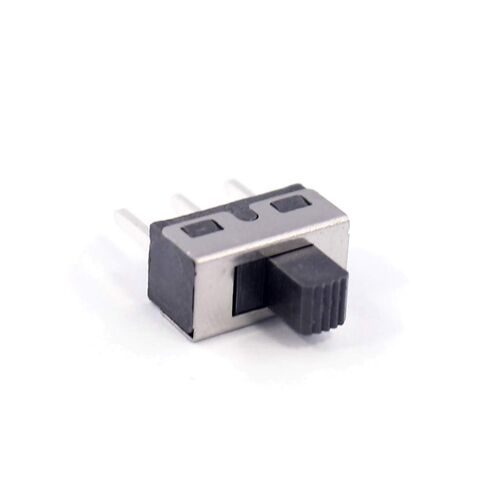

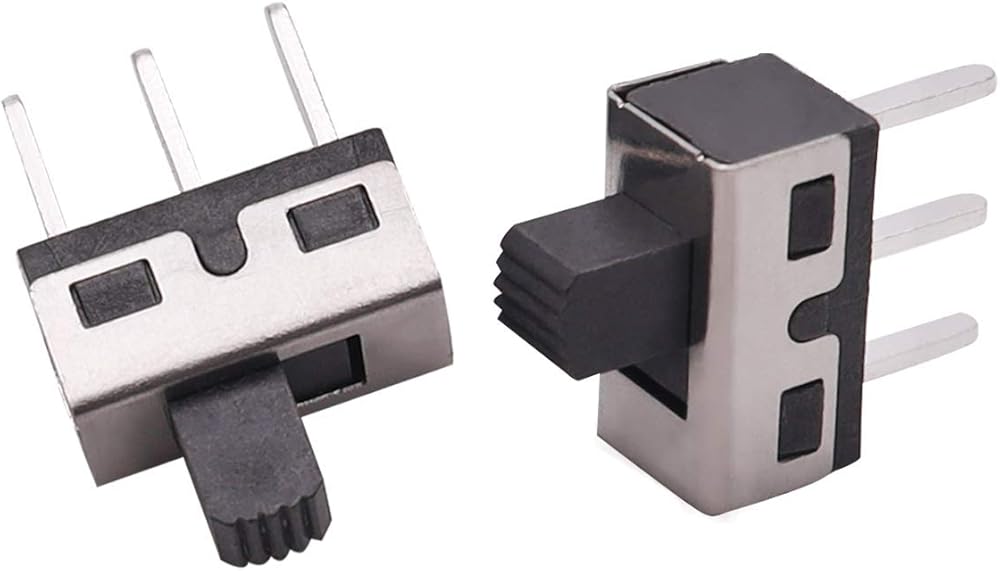

20 Pcs 5mm High Knob Vertical Slide Switch 3 Pin 2 Position 1P2T SPDT Panel (Pack of 20) CYT1107

KWD 3.500
Brand
WOWOONE
Weight
32 g
Color5mm-3 Pin-Slide Switch-20Pcs
– 1 +

Special Features

  • Product Name: Slide Switch; Type: 1 Pole 2 Throw; Material(External): Plastic, Metal.
  • Rated Voltage: AC 250V, Rated Current: 2A.
  • Soldering Pin Size: 6.8 X 1.3 X 0.8mm / 0.27 X 0.05 X 0.03inch(L*W*H).
  • Micro toggle switch Size: 12.7 X 6.6 X 13.2mm/0.5 X 0.26 X 0.52inch(L*W*H), Sliding Knob Length: 3.5mm/0.14inch.

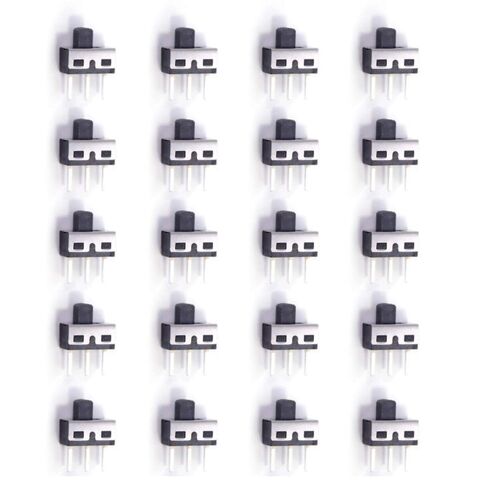

  • Package Content: 20 Pcs x Slide Switch.

Description

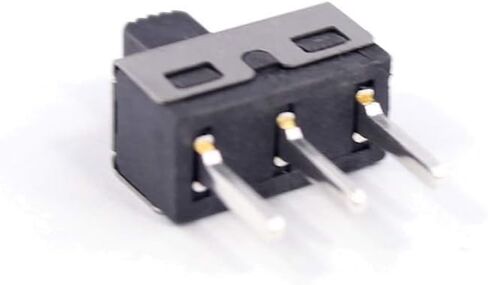

This 1P2T mini slide switch is equiped with 3 solder lugs with 0.8mm thickness and 4.7mm pitch can be easily soldered on PCB surface. 3.5mm length square sliding knob to control the circuit power on/off widely used in the electric toy, sound equipments, fax, test instrument equiopments, or other low voltage circuit electronic equipments.Also this 3 pin slide switch is a great component for DIY.

Specifications:
Type: 1P2T
Rated Voltage: AC 125V
Rated Current: 2A

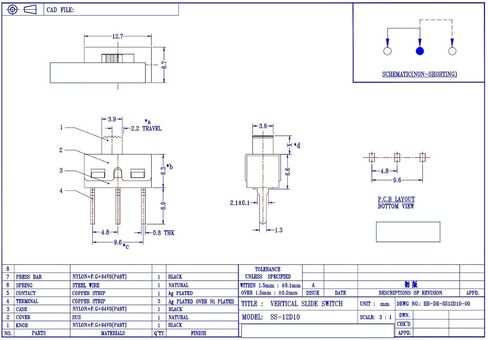

Switch Size: 12.7 X 6.6 X 13.2mm/0.5 X 0.26 X 0.52inch(L*W*H)
Soldering Pin Size: 6.8 X 1.3 X 0.8mm/0.27 X 0.05 X 0.03inch(L*W)
Sliding Knob Length: 3.5mm/0.14inch

Package Included:
20 Pcs x Slide Switch/micro switch
