Switch Encoders
100% brand new and high quality This pulse encoder is suitable for manual pulse input type such as CNC or Milling machine High reliability, 6mm terminal connection type Ultra-thin and lightweight design, metal gear, smooth rotation, no sticking point position Hand wheel 100 stop positions, can return to normal, no high level output

Specifications:
Material: aviation aluminum
Color: black, white (Optional)

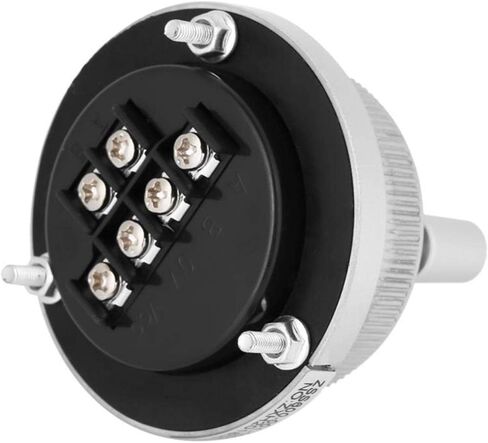

Product type: 6 terminal
Voltage: 5V
Diameter: 60mm/2.36in
Consumption current: ≤100mA
Response frequency :0-20 KHZ
Empty ratio: 0.5 T ± 0.1 T
Mechanical revolution: 500rpm
Normal revolutions: ≤200RPM
Protection: oil proof, water-resistance, dustproof IP54
Working temperature: -10~70℃
Working humidity: 30-85%

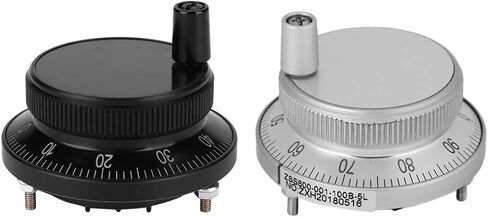

Size: as the picture
Weight: 200g

Package includes:
1 x CNC Pulse Encoder
