Parameter:
Using Medium: Air
Using Pressure Range: 0.1~1.0Mpa
Temperature of surrounding and Medium: -5 ~60¡ãC
Working Model: Pressure adjustment
Installation connection: External whorl connection

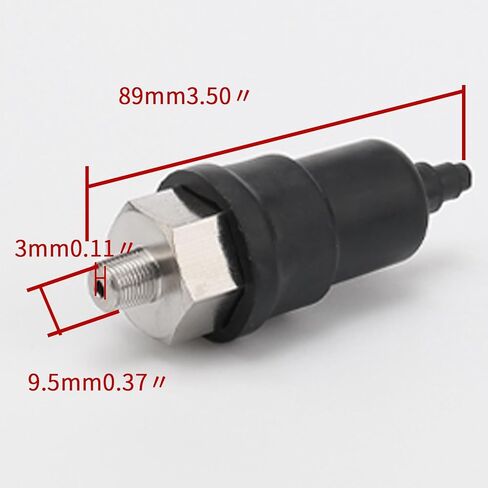

Connect Tube Caliber: 1/8"
Working Voltage: 220V/AC; 48V/AC, DC
The Maximum Operating Current: 500mA
The Maximum Power: 100VA, 24VA
Insulation Voltage: 1500V, 500V
The Maximum Number of Pulses: 200 Circle/min
Usage Life: 1 million circle
Assurance Level: lp54

Feature:
NO: Normally Open
NC: Normally Close

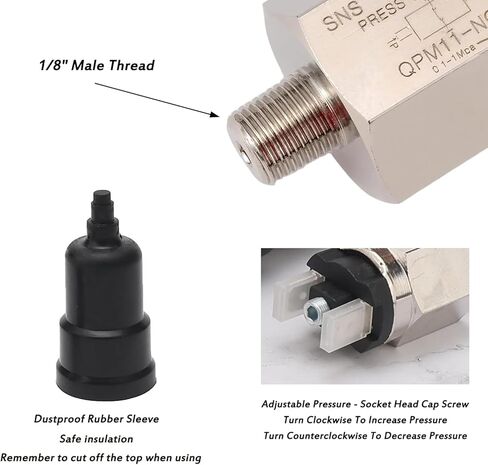

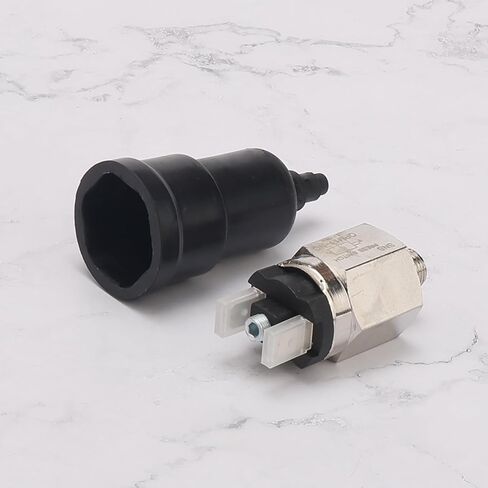

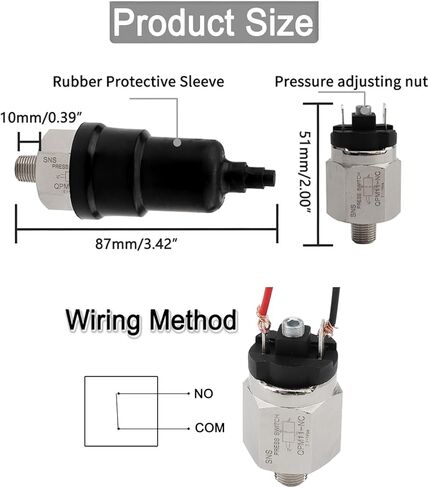

Adjust the pressure, tighten the two intermediate terminals hexagonal wire
Normally open: ie pressure not reached the set value, the switch contacts open;
reaches the set value, the switch contacts closed circuit is energized
Normally closed: the pressure yet reached the set value, the switch contact closure;
reaches the set value, the switch contacts open, the line is de-energized state
Adjustable pressure range: 0.1-1Mpa (1-10kgf / cm2)

Package included:

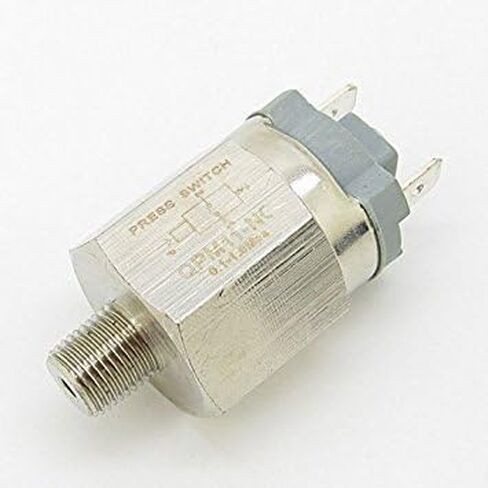

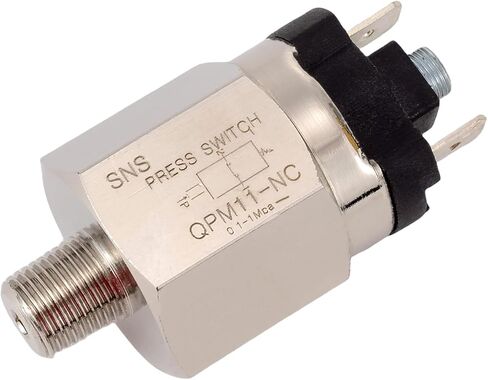

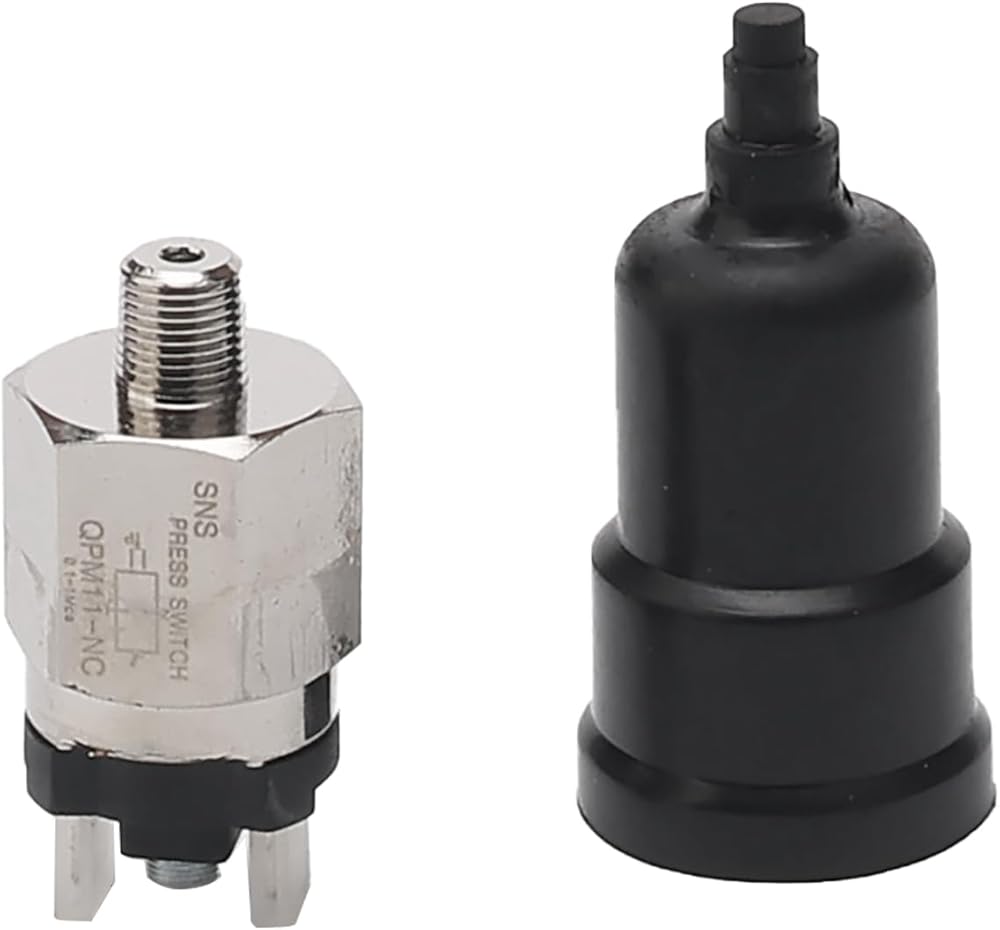

1 pcs Adjustable Pressure Switch
