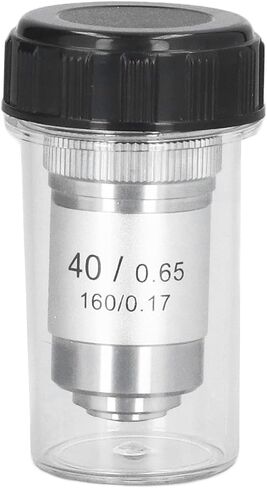

Achromatic Microscope Objective 40X High Magnification Lens Achromatic Microscope Objective 40X High Magnification 20.2mm Interface Standard

KWD 8
Brand
Walfront
Category
Microscopes
Weight
85 g
– 1 +

Special Features

  • BRIGHTER AND CLEARER IMAGE: Lens after coating bring high transmittance, high refractive index, possess brighter and clearer image
  • WITH PROTECTIVE DEVICE: Spring protection device can automatically rebound when the cover glass is encountered during observation, to the lens from crushing the specimen
  • BRASS: Brass material with fine workmanship, not easy to fall, exquisite and durable, the shell is plated with accurate materials
  • UNIVERSAL SCREW INTERFACE: The screw interface size is the international standard RMS size, which can be used by 95% of professional biological microscopes on the market
  • 40X MAGNIFICATION: This is a 40X high magnification objective, helps a lot in study, work or research, useful, helpful and practical

Description

Specification:
Item Type: Achromatic Microscope Objective
Model: 40/0.65
Material: Brass
Use: Microscope accessories
Interface Size: Approx. 20.2mm / 0.8in (international standard RMS size)
Numerical Hole Diameter: 0.65mm
Cover Glass Applicable Thickness: 0.17mm
Microscope Applicable Mechanical Tube Length: Approx. 160mm / 6.3in
Working Distance: Approx. 18mm / 0.71in
Common Rail Distance: Approx. 195mm / 7.68in
Parfocal Distance: Approx. 45mm / 1.77in
Spring: Yes(automatic rebound)

How to Use:
1.Canbeusedafterconnectingwiththemicroscope.
2.Inordertofacilitateobservation,itisrecommendedtostartobservationatlowmagnification.Itismoredifficulttoadjustathighmagnificationthanatlowmagnification.Accordingtothecharacteristicsoftheobservedspecimen,notallslicesaresuitableforobservationunderhighmagnification.

Package List:
1 x Lens
1 x Storage Box
