GDSTIME 80mm x 80mm x 25mm DC 24V Dual Ball Bearings Brushless Cooling Cooler Case Fan

KWD 4.500
KWD 6.500

Brand
GDSTIME
Category
Fans & Cooling
Weight
45 g
1 +

Special Features

  • 【Wide Application】Designed for projects that requires cooling or ventilation; or it can be used to replace old or broken fans found in power supply, amplifiers, power inverter, dehumidifier, LED stage lights, electronic cabinets, etc.
  • 【Dual Ball Motors】These Brushless dc fan comes with Long-life Dual-ball bearings that has an operating lifetime of 50,000 hours. it can be mounted flat or upright
  • 【XH2.54-2 Pin Plug】It's a 2-pin connector fan with 11.8 in. enough long thick power wires; Power input 24V/0.1A; the black wire is negative (-); the red one is Positive (+); You can easily exchange the wires if their position is different from your old fan

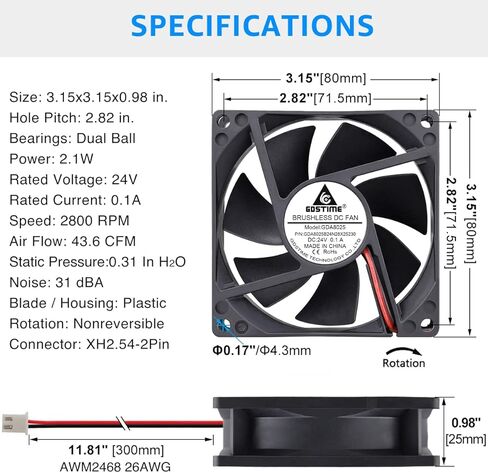

  • 【Fan Specs】80 x 80 x 25 mm ( 3.15 x 3.15 x 0.98 in. ) | Rated Voltage: 24V DC | Rated Current: 0.1A | Power: 2.1W | Airflow: 43.6 CFM | Static Pressure: 0.31 In H2O | Noise: 31 dBA | Speed: 2800 RPM
  • 【What You Get】Includes GDSTIME 1pcs 80x80x25mm 24v fan; 4pcs long enough screws nuts for your mounting; 1pcs 80mm metal fan grill to protect your fingers & fan blades
  • 【Easy to Install】Fan size (edge to edge): 3.15 x 3.15 x 0.98 in. (80 x 80 x 25 mm); Hole to Hole Distance: 2.82 x 2.82 in. (71.5 x 71.5 mm); The fan can be used as both intake or exhaust fan inside your electronic enclosure or rv cabinet
  • 【Long-lasting Cooling】Start Voltage: 5.5V; Operating Voltage: 14 to 26V; (overtake 26V, it can also work. but it is not safe and will seriously affect the service life of the fan.)

Description

The GDSTIME 80mm x 25mm Ball Bearing 24V DC Axial Cooling Fan is ideal for your Electronics and Mechanical Components Cooling Ventilation; This dc cooling fan features a brushless motor, dual ball bearings, lower noise level and easy to install.

This is a 80 mm cooling fan having a thickness of 25mm. Designed for projects that requires cooling or ventilation; You can use this fan to replace old or broken fans found in power supply, amplifiers, power inverter, dehumidifier, LED stage lights, electronic cabinets, and other electronics machinery.

This is a quiet 24 volt 80mm dc fan that comes with premium quality brushless motor and Dual Ball Bearings that has an operating lifetime of 50,000 hours. The fan's Blades / Housing are constructed of Plastic Material UL 94V-0 P.B.T. which have a high resistance to flammability. Impedance protected motors contains pure copper coil that have a higher resistance to heat during a rotor lock. It is a 2-pin connector 80 mm fan with 11.8 inches enough long power cable.

These 80mm x 80mm x 25mm brushless dc cooling fan can be used as both intake or exhaust fan inside your pc case or server chassis. The fan generates an airflow of 43.6 CFM and static pressure of 0.31 In H2O. and spins at a constant speed of 2800 RPM. It is also relatively quiet in operation and has a maximum noise rating of 31 dBA. Even at full speed it is pretty silent and offers great performance.

These cooling fan kit including 1pcs 80x80x25mm 24V fans, 4pcs screws and nuts long enough to mount for your use, and 1pcs 80mm metal fan grills are used to provide a physical barrier around spinning fan blades to prevent accidental contact with fingers or other objects.

So, if you looking for a 24 volt 80mm x 25mm fan for your electronic projects, or for other devices then this one is a good choice.
