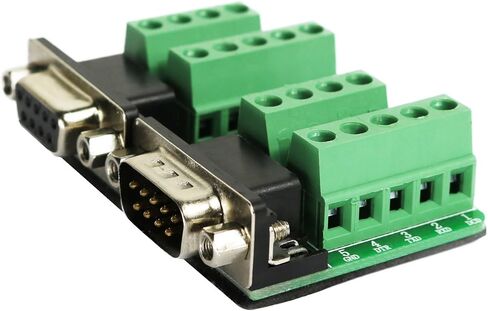

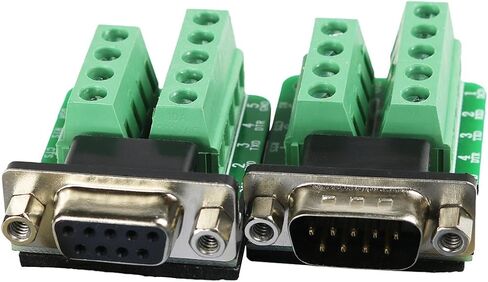

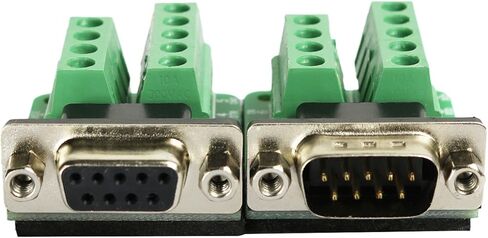

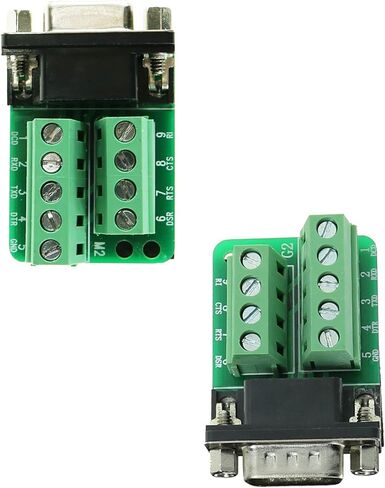

Twinklebay DB9 Breakout Connector RS232 Serial 9 Pin Connector Db9 Terminal (Male x 1, Female x 1)

KWD 5
KWD 6.500
Brand
Twinkle Bay
Weight
45 g
– 1 +

Special Features

  • With insulation foam at the bottom
  • All-copper base, contacted better and more antioxidative
  • All signal ports named and labeled clearly
  • High quality PCB carrier, FR-4 fiber glass PCB.
  • Compliant assembly, 100% new, quality multiple checked before fulfilled.

Description

Net weight: 22g/pcs
Package weight: 46g
PCB dimensions(L x W): 1.57 x 1.18''/40 x 30mm
External dimension (L x W x H): 1.73 x 1.18 x 0.7"/44 x 30 x 18mm
Terminal hole diameter: 0.12''/3mm, terminal hole center distance : 0.2''/5mm
Wire range: 22-12AWG
Rated current: 1A
Material:
Base: copper base and plastic part
Torque: 0.2Nm (1.7Lb-In.)
Screws: steel, Cr3+ Zn plated
Pin header and cage: Brass

Package included:
1 x DB9 breakout board male adapter
1 x DB9 breakout board female adapter
