10G Extended Temperature Range SFP+ to SFP+ fiber to fiber converter with DIN rail mount support is a fiber-to-fiber type 10Gbps device that acts not only as fiber optic media converter or as a fiber optic repeater for long-haul transmission, but is an all in one solution to get 10GE fiber network to be Re-Amplificated, Re-Shaped and Re-Timed.
3R Repeater / Extender / Media converter for all your 10G fiber network mode & wavelength conversion needs.

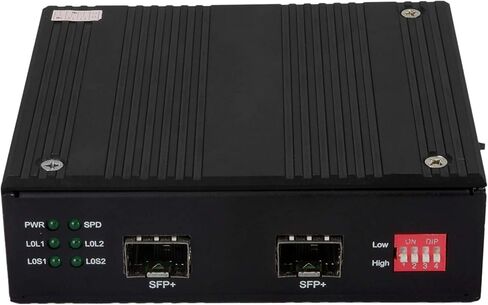

More than that - unit supports not only 10G SFP+ type modules - but, also 1G (1.25G) standard MSA compliant SFP transceivers are supported - just select the mode using the dip switch on the front panel!

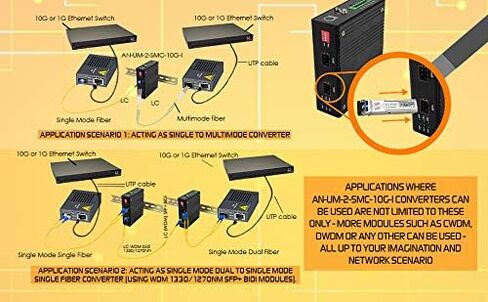

It is commonly used in network backbones (SAN, LAN, MAN, WAN). Supports various protocols such as SDH / SONET STM-64 / OC-192, 10G Fiber Channel, 10G Ethernet, etc. can be used in a telecommunications room, R&D lab, data center, etc. Supports any standard SFP+ 10G or 1G modules with 850nm, 1310nm / 1550nm / CWDM / DWDM optical wavelength conversion.
Product features
Jumbo frames support
Transparent signal transmission and low latency
The rate supports 8.5Gbps~11.7Gbps or also 1.25G (selectable by dip switch)
Supports OEO 3R functions: signal amplification and regeneration, waveform shaping, clock retiming
Easy installation - Plug & Play
Wide Range Protocol Support
8.5G Fiber Channel SONET OC-192, SDH STM-64 (9.95Gbps) 10G WAN (10Gbps) 10G LAN (10.31Gbps) OTN OTU-2 (G.709) (10.70Gbps) 10G LAN with 255/237 FEC coding (11.09Gbps) 10G Fiber Channel (11.32Gbps) 10G POS Technical Parameters
Transmission rate:8.5Gb/s-11.7Gb/s
Interface Type: SFP+ standard slot
Power supply input voltage:DC 12V~48V(AC adapter comes in set)
Power consumption:≤4W
Operating temperature:-40°C to +85°C (-40°F to 104°F)
Size 110mm(L)*104.5(W)*35mm
