INTRODUCTION

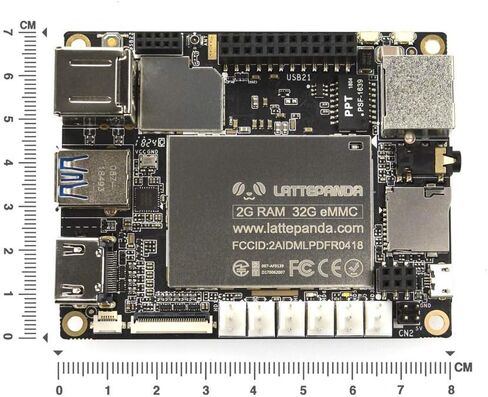

A LattePanda is a complete Windows 10 single board computer. It comes pre-installed with a full edition of Windows 10 Home Edition, so you can run powerful tools such as Visual Studio, NodeJS, Java, Processing, and more.

But wait! A LattePanda also includes an integrated Arduino compatible co-processor, which means it can be used to control and sense the physical world! Whether you are a Windows developer, IoT developer, DIY fanatic, interactive designer, robotics whizz, or maker, it can aid your creative process!

We have updated the processor since LattePanda V1.0. All versions of the LattePanda now ship with an upgraded CPU (Intel Z8350 - up to 1.92GHz!)

Note:
- This device does not include a Windows 10 activation key
- Please use a USB adapter with NO LESS THAN 2.1A as the power supply to LattePanda and a quality MicroUSB.
- LattePanda is a development board targeted at makers, educators and embedded systems engineers. If you do not have a professional background in electronics or technology, we recommended you read the instructions and precautions at LattePanda official website Docs before using the product.
- Please read user manual first, and any concern feel free to contact us via email.

SPECIFICATION
Intel Cherry Trail Z8350 Quad Core Processor
Base Frequency: 1.44GHz (1.92GHz Burst Frequency)
Operating System: Windows 10 Home Edition (Unactivated)
RAM: 4GB DDR3L
Storage Capacity: 64GB
GPU: Intel HD Graphics, 12 EUs @200-500Mhz, single-channel memory
Integrated Arduino Co-processor: ATmega32u4 (Arduino Leonardo)
Video output: HDMI and MIPI-DSI
Onboard touch panel overlay connector
Supports 100Mbps Ethernet
Intel Processor GPIO x 6
ATmega Processor GPIO x 20
Gravity Interface Connectors x 6
Voltage: 5V@2.1A
RoHS, FCC and CE Compliant
