About the product:
The DC converter regulator is a reliable power transformer. With the character of large input voltage, low power consumption, high efficiency, and high reliability. Widely used in industrial, automotive, instrumentation, communication, and civil fields, such as golf carts, forklifts, cars, trucks, motors, communications, ships, yachts, solar energy systems, etc.

Good choice for you:
1. Die-cast aluminum shell, epoxy potting, cooling by free air convection, shock-proof and moisture-proof. Waterproof grade IP68, small size, and lightweight.
2. 100% full power stable current output, non-isolated module. Safety protection, after over-current, over-voltage, over-temperature, overload, and short circuit, the voltage conversion regulator will automatically recover when the equipment returns to normal operation.
3. The transmission efficiency can reach up to 90%, the heat generation is low, and the performance is stable.

Specification:
Input Rated Voltage: DC 12V/24V
Input Voltage Range: 10-32V DC
Output voltage: DC12V 6A
Output Rated Power: 72W
Efficiency: 90% (half load); 86% (full load)
Output Peak Power: 90W
Voltage Regulation: Less Than 1%
Load Regulation: Less Than 2%
Ripple(full load test): Less Than 150mV
No-load Current: 25mA

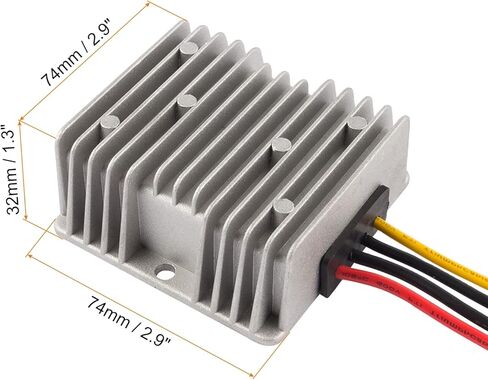

Total Size: 74*74*32mm(L*W*H)
Weight: 300g
Package included: 1 x DC 10-32V to DC 12V 6A Voltage Converter

Easy to install:

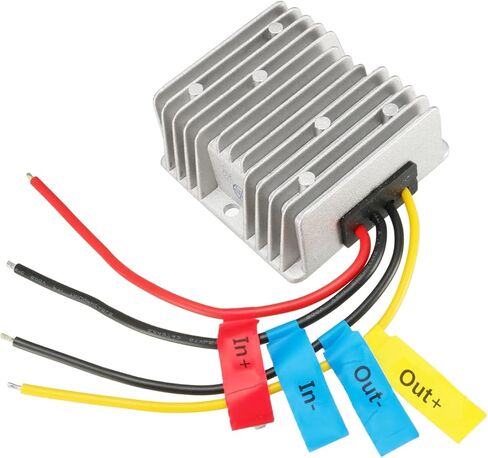

The back of the product is marked with positive and negative poles, input and output connections, and the positive and negative poles cannot be connected in reverse.

Tips:
The input voltage should not exceed the fluctuation range that the converter can withstand, and it cannot be used for a long time under MAX.
