Note:
1. This Extender is not a PoE Switch, it can not work without powered from PoE Switch/PoE injector/PoE NVR.
2. Please don't place any heavy thing on the PoE extender;
3. To prevent the water seeping into the extender, please keep PoE extender away wet environment;
4. Suggest to use PoE extender indoors. When installing the extender in outdoor please install it in a waterproof place.

Overview:

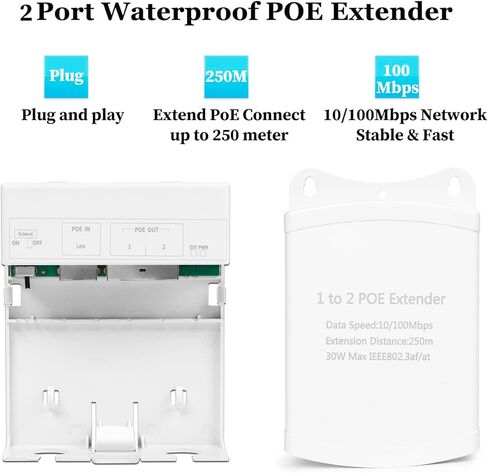

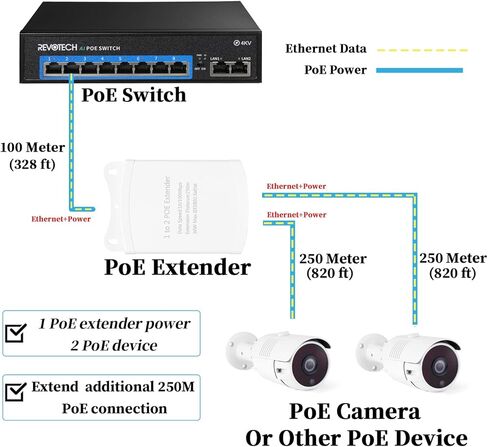

PoE Extender is a cost effective way to extend the Ethernet network range beyond 100m, delivering both data and power to network devices such as WLAN Access Points and Network Cameras up to a distance of 200m while complying with IEEE PoE and Data standards.

Specification:

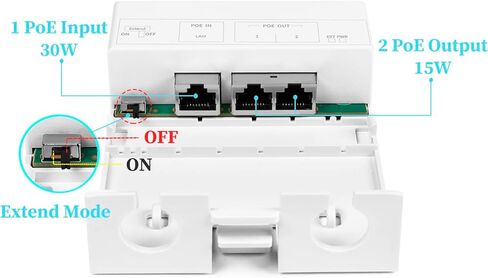

PoE input: 1 RJ45 port(DC 48-57V)
PoE output: 3 RJ45 port
Input power: 30 Watts Max
Output power: 15 Watts Max
Network Medium: Cat5 ,Cat5e,Cat6,Cat6e,UTP cable(less than 120m)
Daisy Chain Distance: up to 700m(6 pieces)
Repeater Mode: Store and forward
MAC Address Table: 2K
Packet Buffer Memory: 48 Byte
Switching Capacity: 400Mbps
PoE Standard: IEEE 802.3af/at
PoE Cable Core: 1/2(+), 3/6(-)
Power Supply Type: Mode A,End-Span
LED Display: PoE Working status, Ethernet
Network Protocol: IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-Flow Control, IEEE 802.3af-Power over Ethernet.
Electromanetic Radiation: FCC Class A, CE
Storage Humidity: 5%~90%, No Condensation
Operating temperature: -10～45℃
Dimension: 81mm * 51mm * 23mm(L*W*H)
Weight: 60g

Package contents:
1 x 3 Port POE Extender (POE5005)
