2PCS Female VGA Solderless Quick Connector 16mm Thinner 3+9 DB15 3Row Serial Plug to 15-pin Port Terminal Female Adapter Breakout Board Compatible with VGA 3+7/3+6/3+6/3+4/3+2

KWD 6.500
Size2PCS Female
– 1 +

Special Features

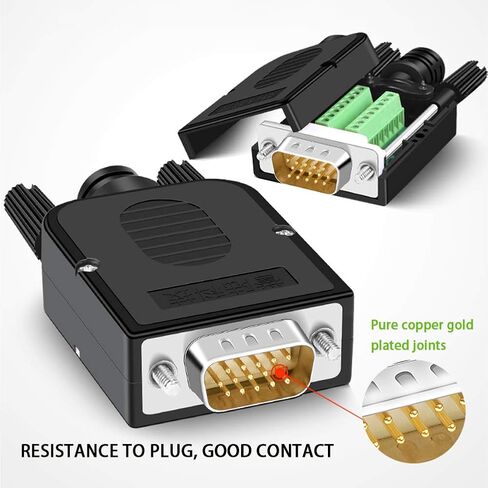

  • DURABLE: Pure copper gold plated joints, automatic wave solder joints, resistance to plug, and good contact to ensure high-quality, durability and a long life. The outer casing is made of environmentally friendly PP engineering material, which is soft and durable.

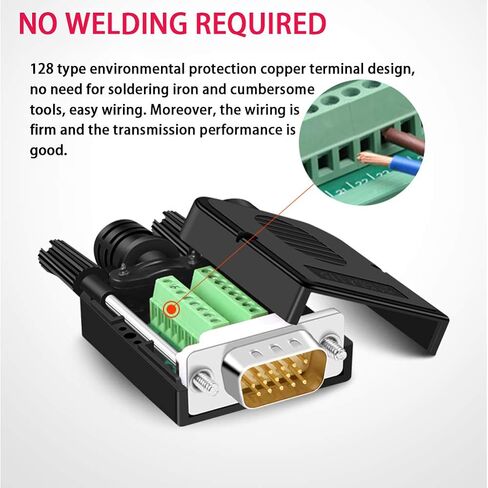

  • SOLDERLESS: No welding required, 128 type environmental protection copper terminal design, no need for soldering iron and cumbersome tools, easy wiring. Moreover, the wiring is firm and the transmission performance is good.
  • THINNER 16mm: The thickness is only 16mm, which is 4mm thinner than the normal solderless connectors, ensuring that the product can be used in a narrow space.
  • STRONG ANTI-PULL: Each product is equipped with a crimping ring, 5mm, 6mm, 7.5mm, 8.5mm 4 different sizes of tail pipe. Make sure that the cable is pulled in use without causing dropped wires or poor contact.
  • MULTIPLE FUNCTIONS: Suitable for VGA3+9/3+7/3+6/3+5/3+4/3+2 cables and various communication interfaces. All signal ports are clearly named and labeled on both sides of the board for quick wiring.

Description

These Male 3+9 VGA Quick Connector are used to VGA terminate the connection type of a cable. They can easily be connected to a custom length cable as well as create a custom pinout, creating a permanent and durable connection for all applications. These connectors are made with high-quality materials to ensure durability and a long life.

Technical Specifications:
Name: 3+9 VGA Quick Connector
Plug type: Male
Accessories: housing, screw, card line buckle
Connector material: Pure copper gold plated joints
Contact Material: Copper
Housing material: environmentally friendly PP engineering materials
Shell type: Screw locking
Cable Specification: 26-16 AWG
Torque: 0.2Nm (1.7Lb-In.)
Automatic Wave Solder: Good conductivity, no solder bridge, no Pseudo Soldering
Opening size (cable port): 10.5mm/0.41″
Size: 49 mm×35 mm×16 mm/ 1.93″×1.38″×0.63″

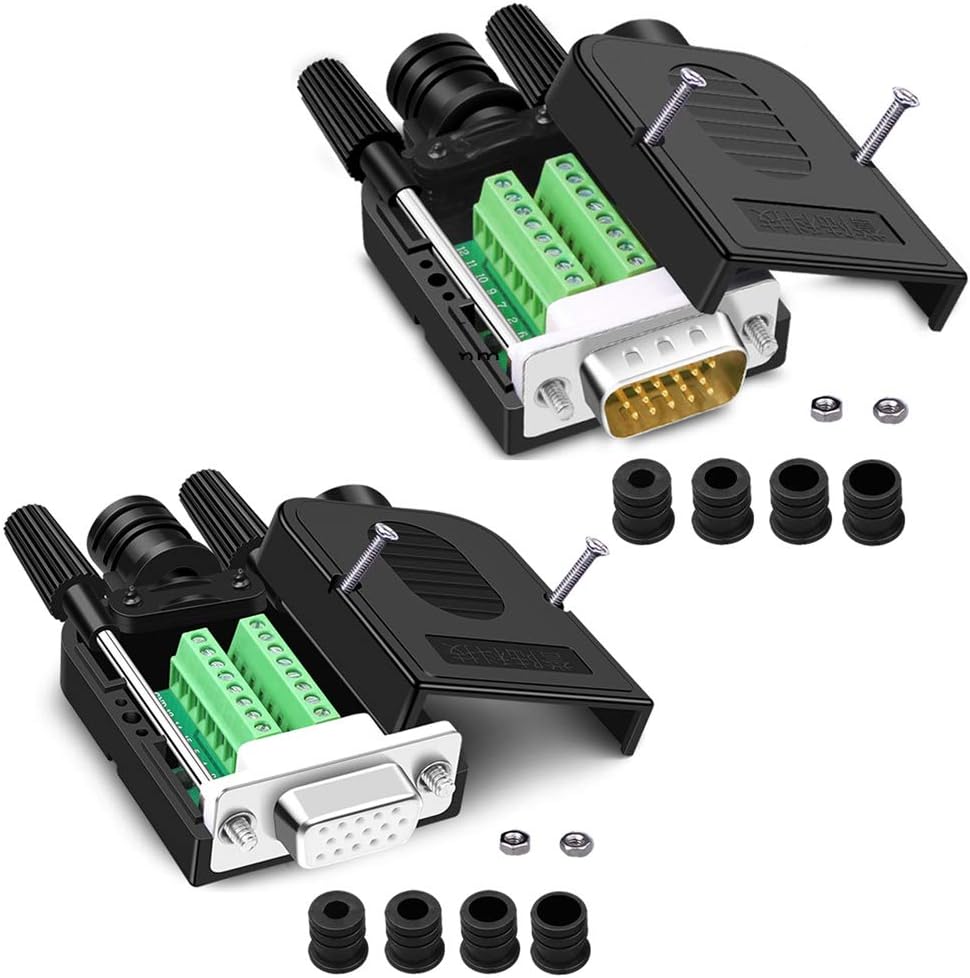

Package includes:
2 x 3+9 VGA Male Quick Connector
2 x 5mm,6mm,7.5mm,8.5mm tail pipe
