L29 Female to Female Mini DIN 4.3-10 Adapter

KWD 5.500
Brand
Whisary
Weight
82 g
SizeDin to MiniDin female to female
– 1 +

Special Features

  • 1.connector : one size is 7/16 Din Female , another side is MiniDin 4.3-10 male
  • 2.Impedance :50 Ohm, Frequency :DC-6GHz VSWR ≤1.10 Insertion loss≤0.05dB PIM3 ≤-163dBc
  • 3.Material :Body Brass with Tri-Alloy plated, insulator :PTFE(Teflon)
  • 4. Din 7/16 female to 4.3/10 Mini DIN male adapter, used in RF Applications,Antennas,Coaxial cable,Wireless LAN Devices and so on
  • 5. Package：1 piece adaptor 7/16 Din Female to 4.3-10 MiniDIN male

Description

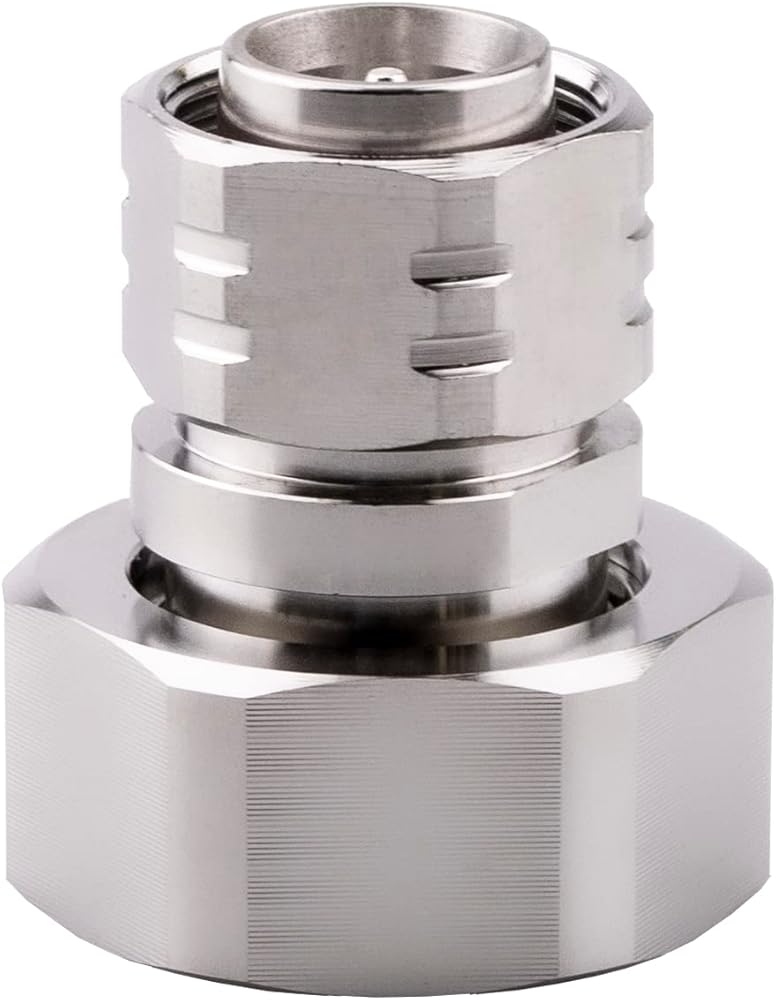

Whisary 4.3/10 MiniDIN male to Din L29 Female Adaptor
1.Material :
Body ：Brass Tri-Alloy plated
Insulator: PTFE (teflon) Center conductor: Phosphor bronze Ag plated
2.Performance index:
Characteristic Impedance : 50 ohm
Frequency Range :DC-6GHz
VSWR ≤1.10
Insertion loss≤0.05dB
PIM3 ≤-163dBc
Dielectric Withstanding Voltage ≥2500V RMS,50Hz,at sea level
Dielectric Resistance ≥5000MΩ
Contact Resistance : Outer contact≤1mΩ;Center Contact≤1.0mΩ
