Specification:

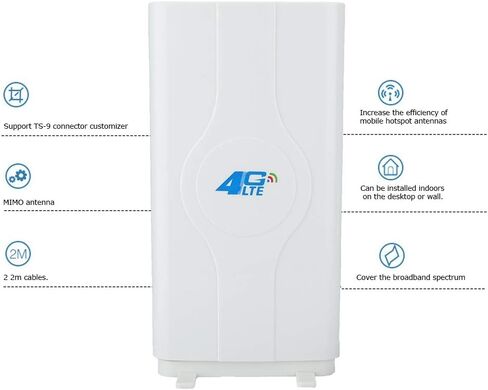

Features:

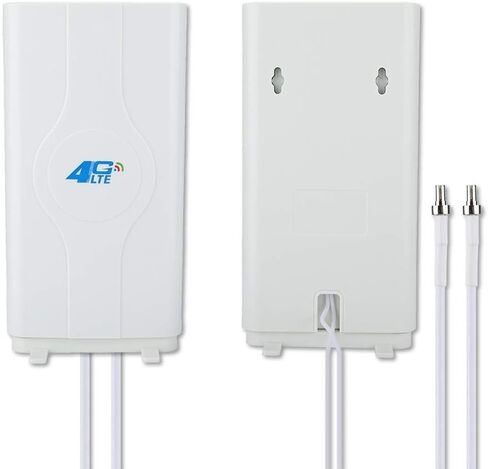

1. MIMO antenna with 2x1.85m cables.
2. Support TS-9 connector customizer.
3. Increase the efficiency of mobile hotspot antennas by up to 50%.
4. Cover the broadband spectrum, 700MHz to 2600MHz.
5. Can be installed indoors on the desktop or wall.
6. Easy to install, no software required.
Specifications:
Frequency range: 800MHz-2600MHz
Broadband: 83MHz
Gain: 88dBi
Half-wave width: H: 73 V: 65
VSWR: ≤1.5
Input impedance: 50Ω
Polarization mode: horizontal and vertical dual polarization
Maximum input power: 200W
protection: DC Ground

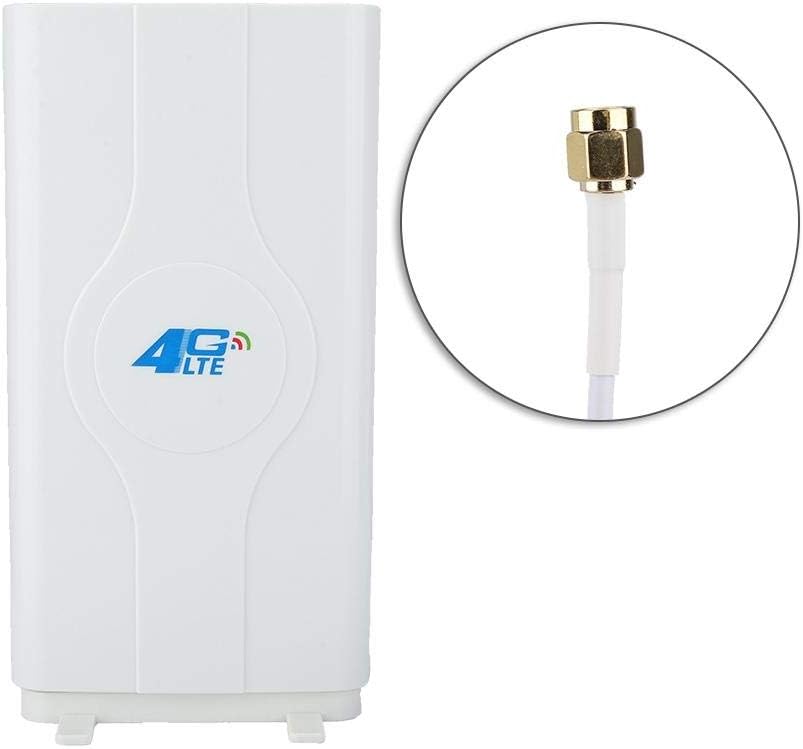

Antenna interface: SMA/CRC9/TS-9
Working temperature: -40° to 60°
Wind speed: 60m/s
Color: White
Placement: desktop or wall
Cable length: 1.85 meters
SMA adaptation model:
for MF28G
for MF29T
for MF29S2
for ZTEMF28D
for E5186
for B890
for B593u-12
for B593s-22
for B593u-91
for B593u
for E5172AS-22
for E5172S-22
for E5172
for B3000
for B2000
for B1000
TS-9 adaptation model:
for R215
for R212
for K5150
for K5005
for K5006Z
for R226;
for MF821D/MF821/MF910/MF90/MF93E/MF91D/MF91/MF91T/MF93D/MF91S/MF827/MF825C/MF95/MF75/Flare
CRC9 adaptation model:
for E3276/EC3372/E3372;
for Netgear Aircard 340u/Aircard 341u/Aircard 771s;
for Netgear 782s/781s/785s/778s/790s (AC790s);
for Sierra Aircard 313u/Aircard 320u/Aircard 330u/754s/Aircard 760s/Aircard 762s/Aircard 763s/Aircard 770s
Note:
The device is compatible with more than the above models.
Package List:
1 * Plate Antenna
1 * Base
