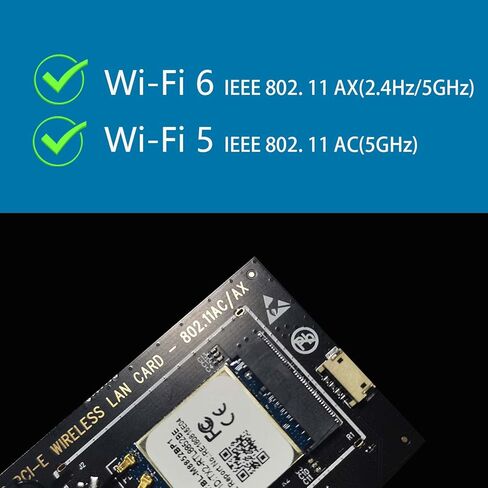

PCI-Express X1 to NGFF M.2 2230 Interface (Key E/A+E) wireless wifi adapter with SMA Antenna
WiFi signal goes through PCIe X1 interface, and Bluetooth signal goes through USB interface (Bluetooth USB cable is included)
Bluetooth USB cable is used to connect the adapter to the motherboard USB port for Bluetooth function
Triple Band 2.4GHz 5GHz 6GHz Antenna: 6 dBi RP-SMA Male antenna, with 2 x 15cm U.FL/IPEX4 to RP-SMA Female pigtail cable
Only work with NGFF M.2 2230 Interface (Key E/A+E) wireless network card, such as Intel AX210NGW, AX200NGW, 9260NGW, 8265NGW, 8260NGW, 7265NGW, 7260NGW, and Broadcom, Realtek, Atheros NGFF M.2 2230 Interface (Key E/A+E) wireless network card. Support WiFi 4/5/6/6E, Bluetooth 4.0/4.1/4.2/5.0/5.1/5.2
To be noted: can not work with M.2 CNVio2/CNVio interface wireless network card, such as intel AX211NGW, AX201NGW, AC 9560NGW, AC 9462NGW, AC 9461NGW, etc.
To be noted: can not work with Mini PCIe wireless network card
Only regular-profile mounting bracket, no low-profile mounting bracket
To be noted: This item is only a signal converter, and does not has any driver. But you may need to install a driver for your M.2 NGFF Key E/A+E Wireless Network Card
OS compatibility: DOS/Windows/Linux/Mac OS (Base on your WiFi Card Compatibility)
