Feature:
1. Support USB function; support Mini PCI, Mini PCI-E, LPC bus interface

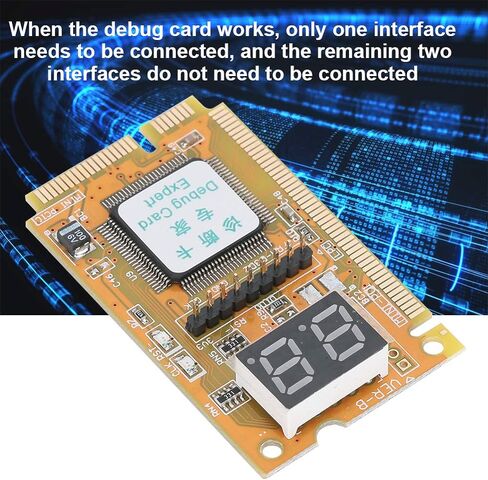

2. When the debug card works, only one interface needs to be connected, and the remaining two interfaces do not need to be connected.
3. The debug card is easy to use and has good stability. It is an ideal tool for laptop repairing.
4. The use of a four-layer PCB design makes the signal more stable and can work in harsh environments for a long time.
5. Tantalum capacitors are used to provide a more stable and reliable power supply for the entire product.
6. More complete layout and easier operation

Specification:
Item Type: Debug Card
Material: ABS
Color: Yellow
Mini PCI Interface: Used to connect the diagnostic card to the Mini PCI slot of the notebook motherboard
Mini PCI-E Interface: the Mini PCI-E slot for connecting the diagnostic card to the notebook motherboard
LPC Interface: LPC interface for connecting the diagnostic card to the notebook motherboard
Dedicated Main Chip: for processing signals of Mini PCI, Mini PCI-E, LPC
Two Seven-segment Display: Used to display diagnostic results
.w-e-text table td,.w-e-text table th,.wang-edit-text table td, .wang-edit-text table th{border: .5pt solid #000;};.w-e-text table,.wang-edit-text table{border: 1px solid #000 !important;}

Package List:
1 x Debug Card 1 x User Manual
