Overview

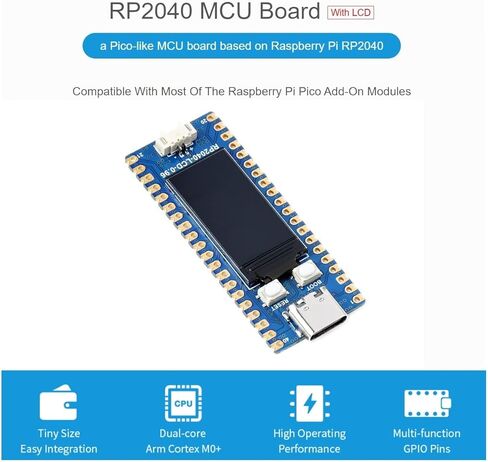

RP2040-LCD-0.96 is a low-cost, high-performance Pico-like MCU board with flexible digital interfaces. It incorporates Raspberry Pi's RP2040
microcontroller chip, as same as the one on Raspberry Pi Pico. For software development, either Raspberry Pi's C/C++ SDK, or the MicroPython is
available, which makes it easy for you to get started, and integrate it into end products quickly.

In addition, there're also an onboard 0.96inch IPS display, Lithium battery recharge/discharge header, and high-efficiency DC-DC buck-boost chip.
Features
RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
Dual-core Arm Cortex M0+ processor, the flexible clock running up to 133 MHz
264KB of SRAM, and 2MB of onboard Flash memory
USB-C connector, keeps it up to date, easier to use
0.96inch 160×80 pixels 65K colorful IPS LCD display

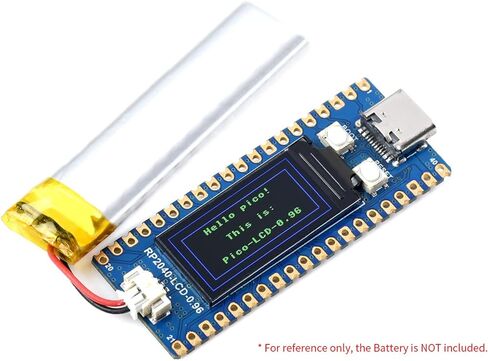

Lithium battery recharge/discharge header, suitable for mobile devices
Onboard DC-DC chip TPS63000, high-efficiency DC-DC buck-boost chip, 1.8A current switch

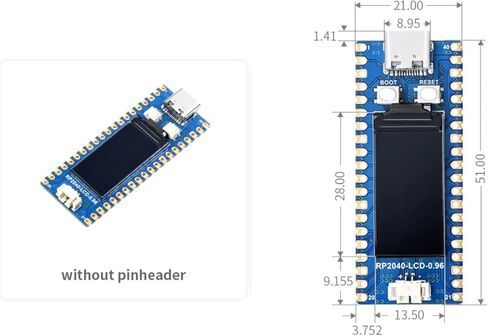

Castellated module allows soldering directly to carrier boards (there should be dedicated cut-out for embedding the bottom components)
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
26 × multi-function GPIO pins
2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
8 × Programmable I/O (PIO) state machines for custom peripheral support

Package Content
RP2040-LCD-0.96 x1

Note
Development Resources are provided , please contact us to get if you need .
