0.96" 7 Pin SPI 128x64 OLED Display Module, 6PCS 0.96 Inch SSD1306 LCD Display Module 12864 Characters DC3-5V for 51 STM32 for Arduino

KWD 7
Brand
UMLIFE
Weight
50 g
ColorBlue
Capacity6PCS
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • ✹✹ 0.96" 128X64 OLED LCD Display Module with I2C IIC SPI Serial.
  • ✹✹ Supports many control chip, compatible with for Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
  • ✹✹ Font Color: Blue/White/ Blue & Yellow.
  • ✹✹ Ultra-low power consumption: full screen lit 0.08W; Super high brightness and contrast are adjustable; With embedded driver/controller, Draw speed is responsive.
  • ✹✹ Package included: 6* 0.96" SPI Serial 128X64 OLED LCD Display Module.

Description

Feature:
Super High Brightness (Adjustable)
Super High Contrast (Adjustable)
Embedded Driver/Controller
Drive Duty: 1/64 Duty
Pixels: 128x64
Panel Size: Approx. 26.70mm x 19.26mm x 1.85mm
Active Area: Approx. 21.74mm x 11.2mm
Pixel Size: Approx. 0.15mm x 0.15mm
Needn't backlight, the display unit can self-luminous
High resolution: 128 * 64
Viewing angle:> 160
Ultra-low power consumption: full screen lit 0.08W
Voltage: 3V ~ 5V DC
Working Temperature: -30 ~ 70

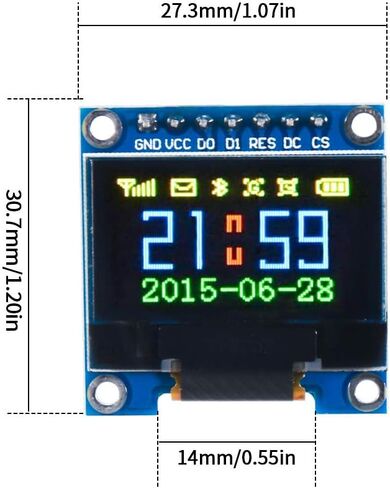

Module Size: Approx. 27.0MM * 27.0MM * 4.1MM
Driver IC: SSD1306
Note: This OLED Part No. is UG-2864HSWEG01, not UG-2864AMBAG01

Pin Definition:
1)GND:power ground
2)VCC:power positive (2.8-5.5V)
3)D0:clock wire
4)D1:data wire
5)RES:reset wire
6)DC:data/command
7)CS:chip select
