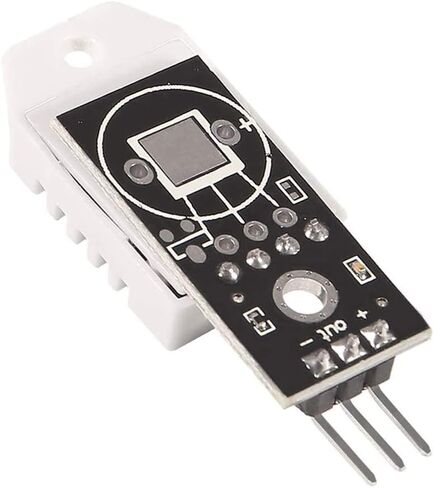

4Pcs DHT22 AM2302 Digital Temperature Humidity Sensor Module with Cable Replace SHT11 SHT15

KWD 4

Brand
AOICRIE
MPN
AOICRIE
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
1 +

Special Features

  • Model: DHT22; Main Chip: AM2302 high sensitive temperature humidity sensor.
  • Single-bus digital signal output, bidirectional serial data.
  • With fixing screw hole, convenient to install and fixed.
  • Temperature range: -40 to 80 degree celsius;Temperature measurement accuracy: +/- 0.5℃ degree celsius.Please make sure the temperature reading interval is greater than 2 seconds,otherwise the reading temperature will be inaccurate.
  • Humidity measuring range:0~100%RH;Humidity measurement accuracy:±2%RH.

Description

Product description
Style:4pcs DHT22
DHT11 digital temperature and humidity sensor is a calibrated digital signal output temperature and humidity combined sensor, which application-specific modules capture technology and digital temperature and humidity sensor technology to ensure that products with high reliability and excellent long-term stability.
No pullup resistor needed. Just plug right in or ESP8266.

Specifications:
1 Type:AM2302
2 Accuracy resolution:0.1
3 Humidity range:0-100%RH
4 Temperature range:-40~80°
5 Humidity measurement precision:±2%RH
6 Temperature measurement precision:±0.5°
7 ultra-low power
8 No additional components
9 excellent long-term stability
10 All calibration, digital output
11 completely interchangeable
12 long distance signal transmission
13 relative humidity and temperature measurement.
14 Resolution: 16
15 With fixed screw holes, convenient installation and fixation. Diameter of 2.6 mm

Features
Long distance signal transmission
Completely interchangeable
Single-bus digital signal output, bidirectional serial data
Excellent long-term stability
Long distance signal transmission
Ultra-low power consumption
No additional components
Package Includes:
4 x DHT22/AM2302 Temperature Humidity Sensor
4 x Free Random Color Cable
