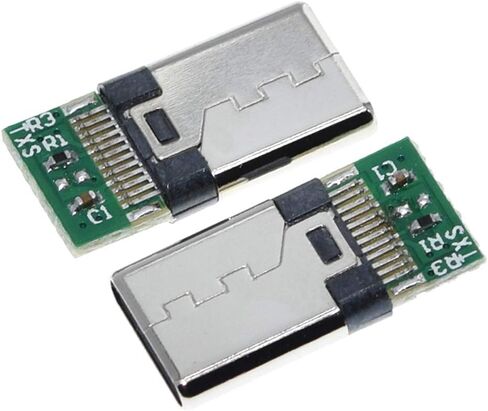

ANMBEST 10PCS USB 3.1 Type C Connector 24 Pins Male Female Plug Socket Receptacle Adapter to Solder Wire & Cable 24P PCB Board Support Module

KWD 3.500
Brand
ANMBEST
Category
Weight
23 g
– 1 +

Special Features

  • [FASTER DATA TRANSFER] Data transfer speed is up to 5Gbps, and Sync movies, music, and more in seconds. It supports up t[FASTER DATA TRANSFER] Data transfer speed is up to 5Gbps, and Sync movies, music, and more in seconds. It supports up to 3 Amps of power output for charging your devices.o 3 Amps of power output for charging your devices.
  • [DURABLE METAL BODY] The converter connector is gathered with aluminium alloy metallic minimalist, ensuring longer life span even plug in and unplug it hundreds of times.
  • Attached with PCB board, convenient for welding and wiring.
  • [APPLICATIONS] Type C interface is widely used in mobile phones, tablets, laptops, and extended data cables, charging heads, mobile power supplies and other digital accessories.
  • Package includes 5 piece male plug & 5 piece female socket.

Description

Specifications:
Rated Current: 3A
Rated Voltage: 20V
Contact Resistance Impedance: 40mΩ MAX
Insulation Resistance Impedance: 100MΩ Min
Withstand Voltage: AC 100V Min
Operating temperature: -30℃~85℃
Durability: 10000 cycles
Terminal block: brass
Gelatin: LCP
Shell: copper
Insertion force: 5-20N Max
Pull force: 6-20N Min
Size: 8.4mm*2.6mm
Module interface:
V: Positive power supply
D-: Data negative
D+: Data positive
G: Negative pole of power supply
Package inlcuded:
5PCS 24 Pins USB 3.1 Type C Male Connector
5PCS 24 Pins USB 3.1 Type C Female Connector
