4pcs 1.3" OLED Display Module SPI IIC I2C Serial 128x64 SSH1106 SSD1306 OLED LCD Display LCD Module for Raspberry Pi/AVR/PIC/STM32 (Blue)

KWD 9

Brand
Coliao
Weight
41 g
ColorBlue
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
1 +

Special Features

  • 1.3 inch oled display module with 128X64 resoluction and SSH1106(SSD1306) chipset
  • I2C oled lcd display module interface: SPI(can be changed to IIC); 4 fixed bolt holes for easy installation
  • Ultra-low power consumption: full screen lit 0.08w
  • Support for multiple operating modes: 3-wire SPI, 4 wire SPI, IIC

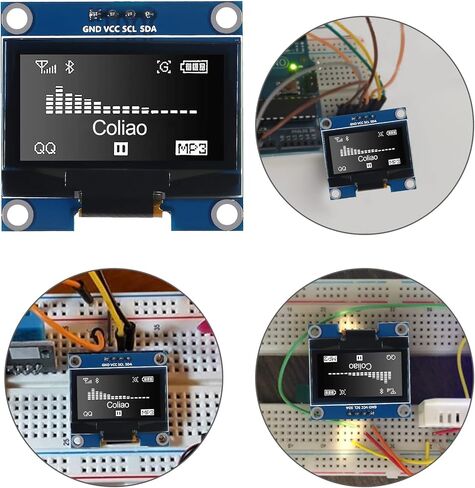

  • Application: These i2c serial 128x64 ssh1106 ssd1306 oled lcd display lcd module can be used for raspberry pi, for 51 series,msp430 series , stm32 etc.

Description

OLED Display Module Features:
1.Super wide viewing angle: More than 160° (a screen with the largest viewing angle in the monitor)
2.Ultra-low power consumption: Normal display 0.08W (far below the TFT display)
3.Wide voltage supply : DC 3V-5V, 3.3V and 5V level logic compatible, no level shifter IC
4.IIC interface and only requires several IOs to light up easily
5.Working temperature is industrial (-30°C~70°C)
6.Support for multiple operating modes: 3-wire SPI, 4 wire SPI, IIC, with chip select CS signal, you can achieve multiple SPI or IIC device on the same bus work
7.OLED screen, internal drive chip: SH1106 (Operation and SSD1306 same)

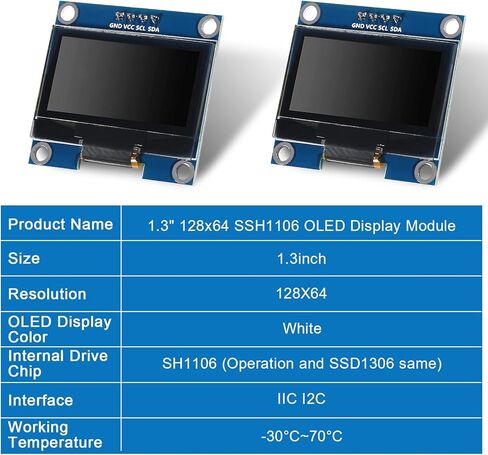

Specifications:
Product Name: 1.3" OLED LCD Display Module IIC I2C Serial
Display Color: Blue/White

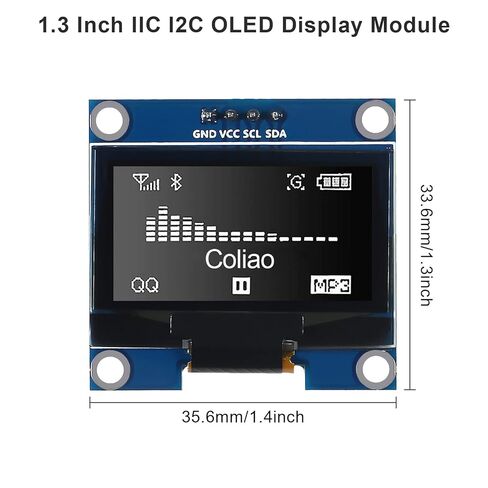

Size: 35.6x33.6mm/1.4x1.3in
Driver Chip: SH1106
Rresolution: 128*64 (Pixel)
Module Interface: IIC Interface

IIC Pin Definition:
GND: Power Ground
VCC: Power + (DC 3.3 ~5v)
SCL: Clock Line
SDA: Data Line

Package Included:

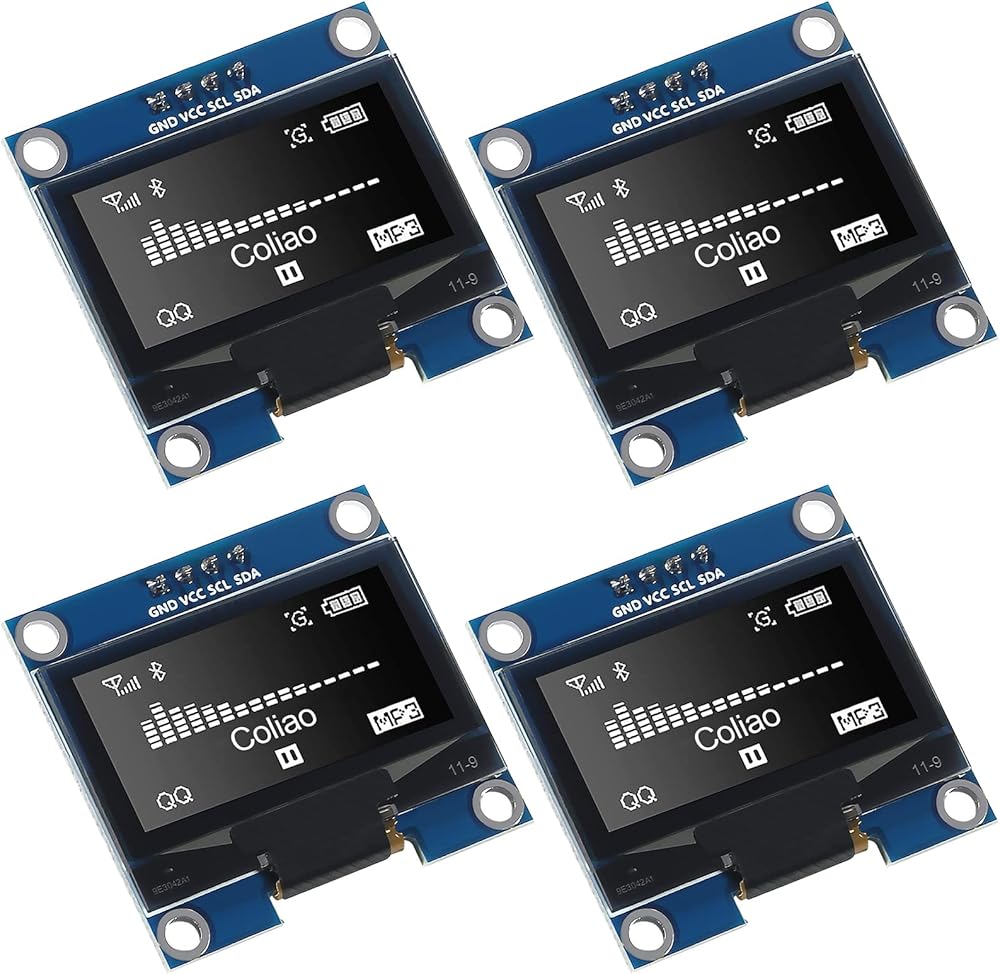

4* 1.3" IIC I2C Serial 128x64 SSH1106 OLED LCD Display LCD Module
