Description:
This relay module is 5V active low, and each one needs 15-20mA driver current.
Uses two 8-channel ULN2803APG darlington arrays chip to control relay module.

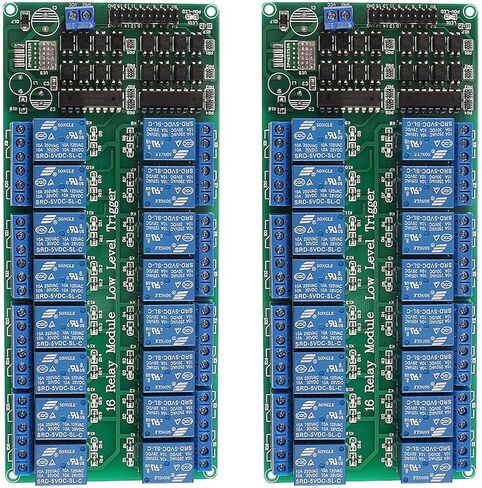

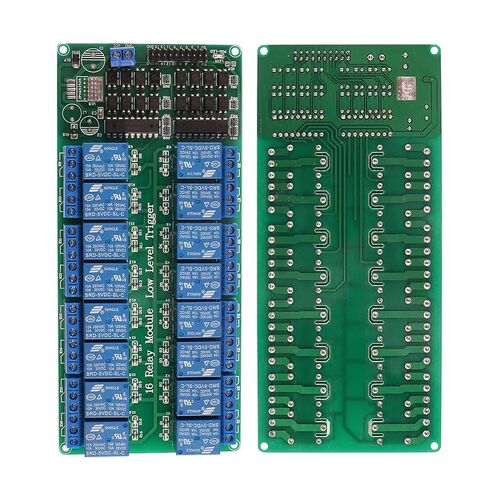

It is a 16-channel relay interface board, which can be controlled directly by a wide range of microcontrollers such as AVR, PIC, ARM, PLC, etc.
It is also able to control various appliances and other equipments with large current.
Relay output maximum contact is AC250V 10A and DC30V 10A.
Standard interface can be directly connected with microcontrollers.
The working status indicator lights are conducive to the safe use.
Widely used for all MCU control, industrial sector, PLC control, smart home control.

Specifications:
Working voltage: 5V
Channel: 16 channel

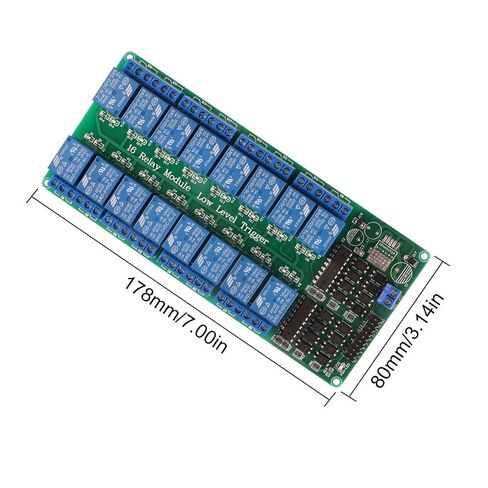

Item size: 17.6 * 9 * 1.7cm / 6.93 * 3.54 * 0.67in
Item weight: approx 240g / 8.47oz
Package weight: approx 251g / 8.86oz

Package:
1PCS*16-Channel 5V Relay Shield Module with optocoupler LM2576 Power supply for arduino
