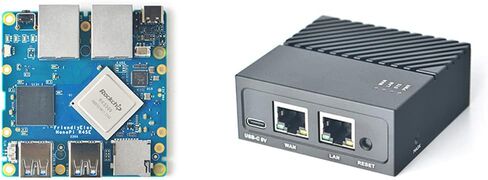

Nanopi R4SE Computer Mini WiFi Router OpenWRT with Dual Gbps Ethernet Ports Onboard 4GB RAM LPDDR4 32GB eMMC Based in RK3399 Soc for IOT NAS Smart Home Gateway Support Linux Ubuntu (with MAC Chip)

KWD 37.500
Brand
WayPonDEV
Category
Network Routers
Weight
298 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • [WIRELESS MOBILE MINI TRAVEL ROUTER] NanoPi R4SE Mini router can support external USB wifi adapter. Simultaneous dual band with wireless speed 150Mbps(2.4G+433Mbps(5G).Convert a public network(wired/wireless) to a private Wi-Fi for secure surfing
  • [Open Source and Programmable] It can support FriendlyWrt, a custom system based on the OpenWrt distribution. It is open source and ideal for developing IoT applications, NAS applications, smart home gateways, and more
  • [High Performance Chip] CPU: Rockchip RK3399,64-bit Dual Core Cortex-A72 + Quad Core Cortex-A53; GPU: Mali-T864 GPU, Supports OpenGL ES1.1/2.0/3.0/3.1, OpenCL, DX11, and AFBC
  • [DUAL GBPS ETHERNET PORTS] The NanoPi R4SE has Dual 2.5Gbps Ethernet ports: one directly extended from the SoC and the other one converted from a PCIe.gets around 934Mbits/second download and upload
  • [LARGER STORAGE & EXTENSIBILITY] 4GB RAM LPDDR4 & 32GB eMMC, up to 128GB MicroSD slot; USB3.0 Host x2: USB Type A; Serial Debug Port x1: 2.54mm pitch 3pin-header, 3V level,1500000bps; Support USB-C, PD x1: Power Input supply; One Native Gigabit Ethernet and PCIe Gigabit Ethernet ports (1 WAN and 1LAN)
  • [USER MANUAL] Wiki:“youyeetoo.com/blog/nanopi-r4se-ysdpr4senomac-187".Pls feel free to email us to get the Datasheet or any questions of this module after you purchased it. How to email us? Click ''forum.youyeetoo.com/'' and ask a question

Description

-Specification-
CPU: Rockchip RK3399
Number of Cores: 64-bit Dual Core Cortex-A72 + Quad Core Cortex-A53
Frequency: Cortex-A72(up to 2.0GHz) + Cortex-A53(up to 1.5GHz)
GPU: Mali-T864 GPU, supports OpenGL ES1.1/2.0/3.0/3.1, OpenCL, DX11, and AFBC
VPU: 4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc
Memory RAM: 4GB LPDDR4
Storage Flash: 32GB eMMC (KLMBG2JETD-B041)
MicroSD Slot: MicroSD x1 for external storage up to 128GB
Power Management : RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, software power-down, RTC wake-up, system sleep mode
Connectivity Ethernet: Native Gigabit Ethernet x1
PCIe Gigabit Ethernet ：x1
USB: USB 3.0 Host x 2 ：USB Type A; USB 2.0 Host x1: 2.54mm 4pin-header
Power Input Only: Type-C x1
Fan: 5V Fan connector
Working Temperature: -20℃ to 70℃
Power: DC 5V/3A, via USB-C connector or Pin header
-Dimension-
PCB: 8 Layer
Dimension: 68x94.5x30 mm (with Case)
Weight: 260g（with Case)
-OS Support-
FriendlyCore Focal Lite (Base on Ubuntu 20.04) (Linux-4.19.111 + U-boot-2017.09)
FriendlyWrt 21.02.1 (64-bit)
-Package Content-
1x Nanopi R4SE 4GB+32GB eMMC Mini Router- With CNC Metal Case
-Technical Support-
Wiki: youyeetoo.com/blog/nanopi-r4se-ysdpr4senomac-187
Please click "WayPonDEV" and ask a question or monica#smartfire.cn (f------>@) skype: monica_9122
Please leave the message in our forum by forum.youyeetoo.com/
