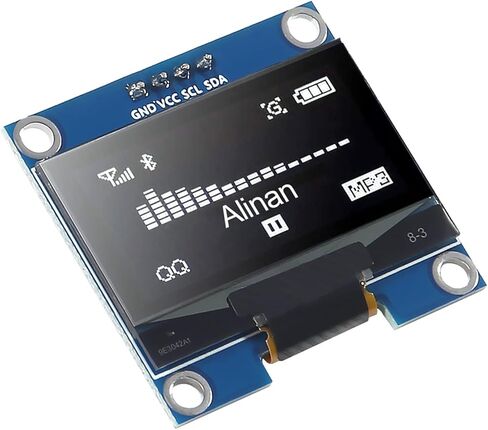

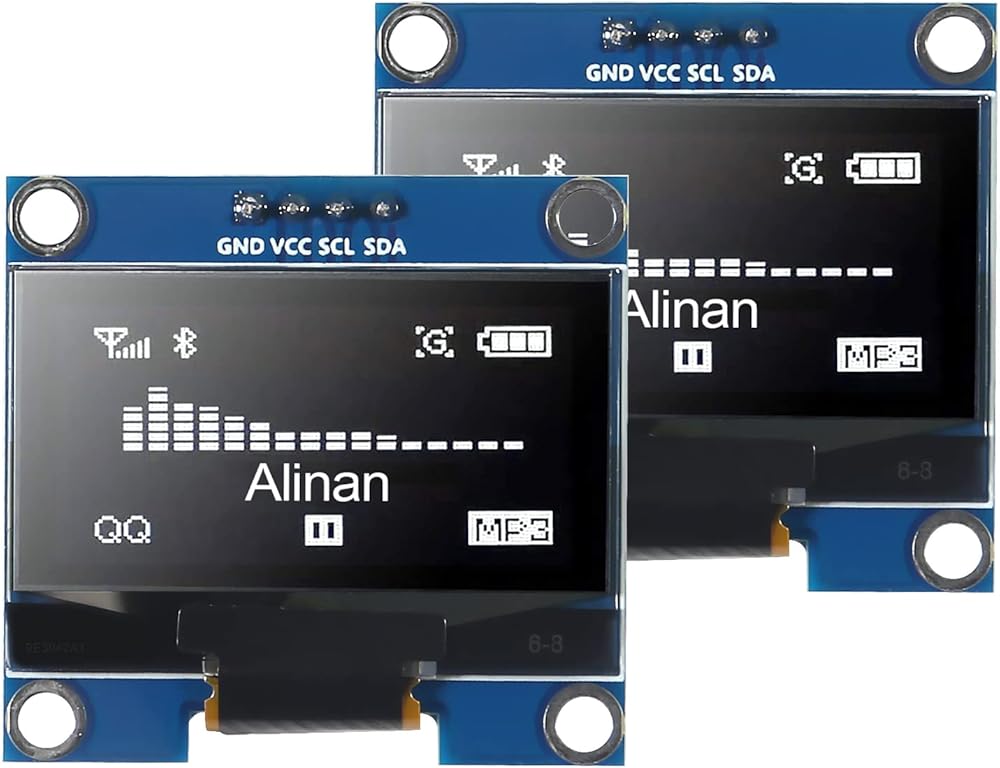

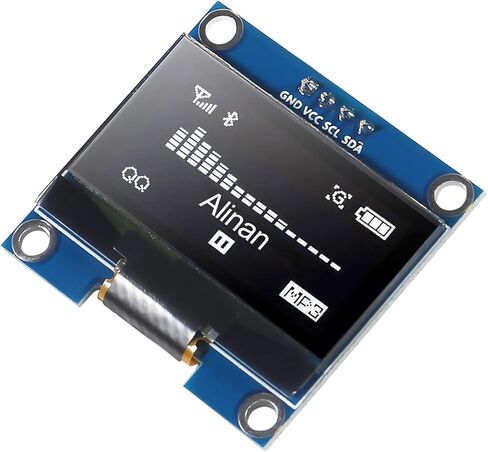

Alinan 2pcs OLED Display Module I2C 4pin 128X64 1.3 Inch Display Module SSH1106 SSD1306 Blue for R3 STM

KWD 5
ColorBlue
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

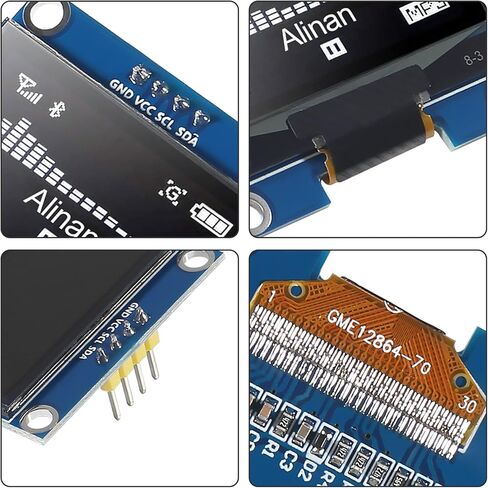

  • ★Four square holes are easy to install
  • ★Support I2c communication Protocol
  • ★Super Low Power Consumption
  • ★Can be used for 4B/3B+/3B/2B/Zero, Beagle Bone Black, for Mega, 51 MCU, STIM 32 and so on. Showing graphical & textual information directly on your micro-controller projects.
  • ★The display unit can self-luminous. It has Super High Contrast, bright and crisp dots, even tiny fonts quite readable.No embedded fonts inside the OLED controller, user can create the fonts through the font generation software.

Description

Feature:
Display Mode: Passive Matrix
Display Color: Blue
Drive Duty: 1/64 Duty

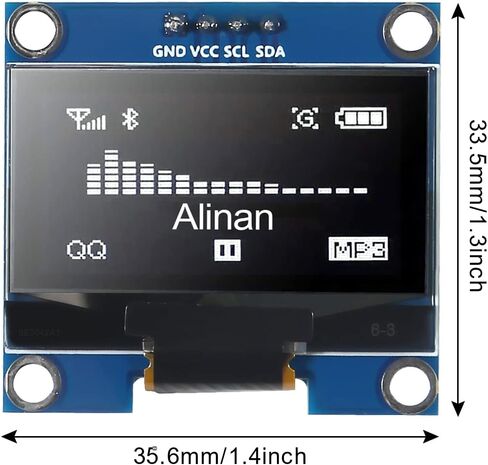

Outline Drawing: 128 * 64
Panel Size: 34.5 *23.0 * 1.4 (mm)
Active Area: 29.42 * 14.7 (mm)
Pixel Pitch: 0.23 × 0.23 (mm)
Pixel Size: 0.21 × 0.21 (mm)
Working Temperature: -30°C~70°C

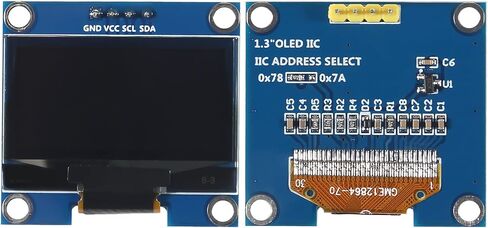

VCC: 3.3 - 5V
GND: Ground
SCL: Serial Clock
SDA: Serial Data
