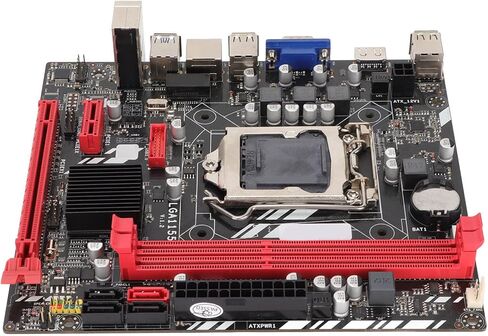

Desktop Motherboard, B75M LGA 1155 DDR3 Gaming Motherboards ATX Computer Motherboards with SATA3.0/2.0 Slot, VGA, HDML, for Core I3 I5 I7

KWD 27
Brand
Cuifati
Category
Weight
481 g
– 1 +

Special Features

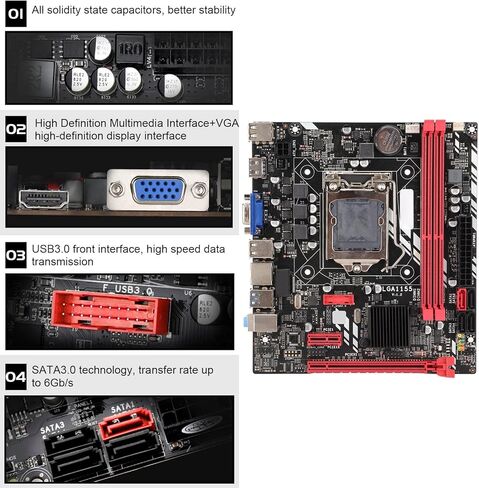

  • Display Interface: High Definition Multimedia Interface and VGA high definition display interface, PCIE 1x8X graphics card slot, support 2xDDR3 memory type.(After many inspections before leaving the factory, motherboard's quality is guaranteed, you can use it with confidence.)
  • All Solidity State Capacitors: Computer motherboards use all solidity state capacitors, with better stability and performance, support for LGA 1155 pins for core I3 I5 I7 computer motherboards.
  • Two Power Ports: Motherboard has 4pin power port and 24pin power port, three phase power supply mode. Good compatibility and expansion space, does not occupy system memory.
  • 6Gb/s Transmission Rate: USB3.0 front interface, high speed data transmission, SATA3.0 technology, transmission rate up to 6Gb/s, fast net speed, more convenient to use.
  • 16GB Memory Capacity: Motherboard has a maximum memory capacity of 16GB, which helps you store more things. It is made of PCB material and has stable performance.

Description

Specification:
Item Type:Motherboard
Material: PCB
Model: B75M
Motherboard Architecture: M ATX
Size: Approx. 190 x 170mm / 7.5 x 6.7in
CPU Socket Type: LGA 1155
Front Side Bus Frequency: 1333 (MHz)
Net Card: 100M Net Card
Graphics Card Slot: PCIE 8Xx1
Supported Memory Type: DDR3x2
Interface: SATA3.0x1, 2.0x3
USB Interface: USB3.0x2+USB2.0x4+Front USB3.0 pin x1+Front USB2.0 Pin x1
Sound Card: ACL662 5.1 Channel
Maximum Memory Capacity: 16GB
Power Connector: 24 Pin x1, 4 Pin x1
Expansion Interface: VGA, High Definition Multimedia Interface, PCIE 1Xx1, COM Pin x1
Battery Type: CR2032 Button Battery (Ship with Inbuilt Battery)
Battery Capacity: 240mAh
Applicable: Desktop
The motherboard is fixed in the host case, and then connected in accordance with the corresponding marked connectors.
Non power on problem:
When the device does not power on and the power indicator does not light up, make sure the power supply is connected and working properly. If your CPU fan is installed correctly, you can also determine whether the power supply is working properly by judging whether the fan can work properly

Package List:
1 x Motherboard
1 x Cable
1 x Baffle
