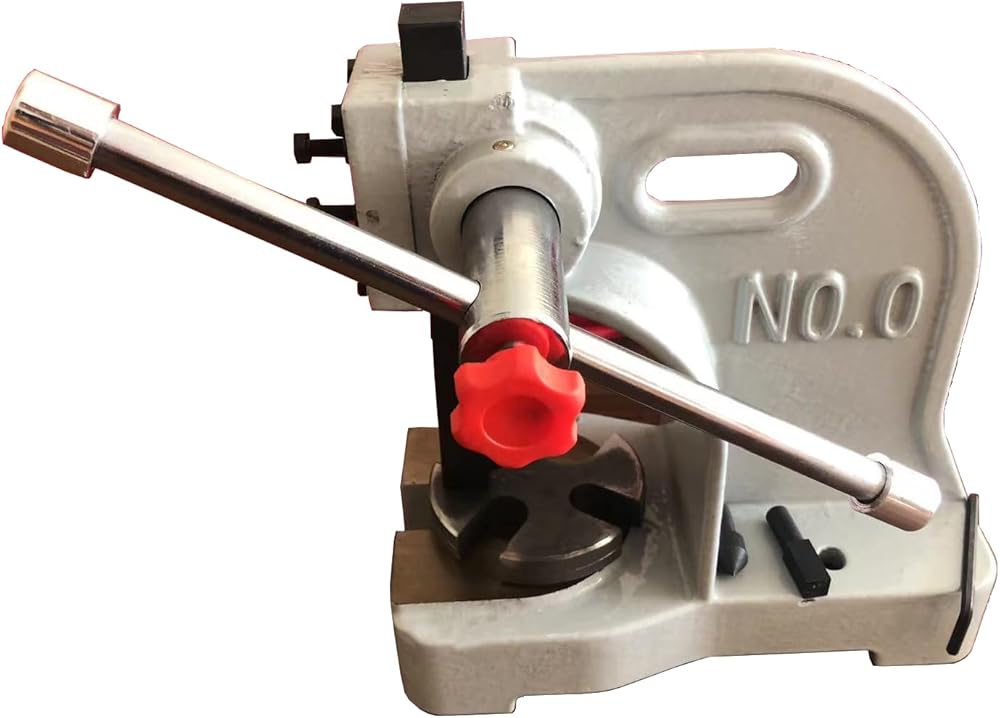

1/2 0.5 Ton Capacity Manual Arbor Presses 9-3/8“ Height

KWD 28
Brand
LLDSIMEX
Category
Arbor Presses
Weight
8.6 kg
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Applies 1/2 ton of continuous force
  • Solid anvil surface for tough pounding and shaping tasks
  • Design fro riverting,squeezing,bending,pinching,flattening,removing a bearing or pressing in bearing
  • machined anvil has 4 slots to provide convenient support for workpieces that vary in size and shape, The Hole of end of the ram 3/8" Dia.

Description

Material：Cast iron

Maximum distance between the Ram and the Anvil: The maximum distance from the ram to the anvil is 4-5/8 inches

The 14# part Anvil size: Thickness: 15mm, and the hole size(4 hole) is 15,20,25,30mm

Ram Size: 3/4 inch square by 7.5 Inch long

Maximum working height: The manual claims 4-5/8 inches

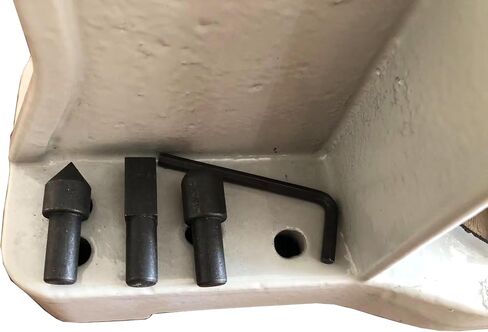

Supply comes with three punches and a magnetic inserrts to hold the punch. Press is equipped with handwheel to perform light presswork
