Table Saw Fence Parallel Positioning Tool, Aluminum Alloy Saw Blade Alignment Jig Table Saw Indicator Gauge Woodworking Aligning and Calibrating Adjustable Limit Pin Positioning Ruler

KWD 10
KWD 10.500
Brand
CDIYTOOL
Weight
422 g
– 1 +

Special Features

  • Size: Precision steel pin is 350mm/13.78 inch; Fixed block is 54x105mm/2.13x4.13 inch. Our simple set works with any table saw that has a miter slot nominally 3/8" x 3/4".
  • Fence Alignment: Before it works, please either set or confirm the alignment of your fence to your table, then lock it and make a mark on the fence where the probe touches.
  • Repeat Cuts: When you have your fence set for a certain critical cut, but you have to change it for something else. When you need the fence back at the same spot, just slide the Simple Set back in the track and reset your fence.

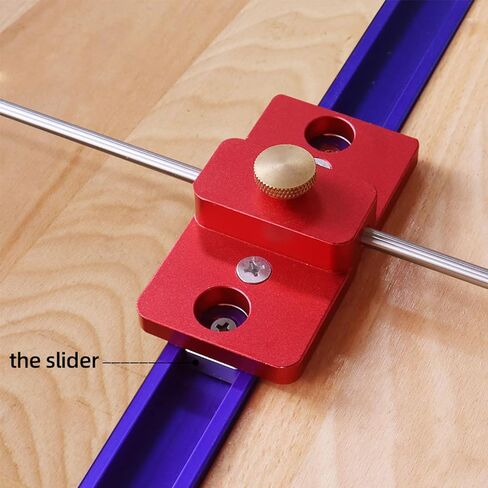

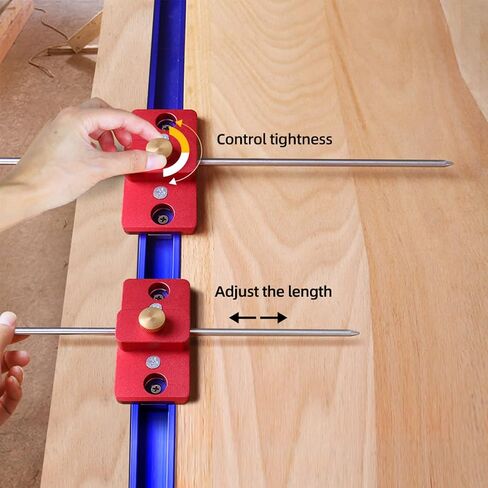

  • Easy to Use: You just need to slide the probe until it touches your fence to check your saw blade to miter slot alignment, and lock the thumbwheel. A simple set of fence gauges fit in your table saw miter slot and hold an extendable stainless steel touch-off probe perpendicular to the slot.
  • Simple set fence gauges fit in your table saw miter slot and hold an extendable stainless steel touch-off probe perpendicular to the slot. Just slide the probe until it touches your fence, lock the thumbwheel and that' s it - a physical reference between the miter slot and the fence.

Description

Features:

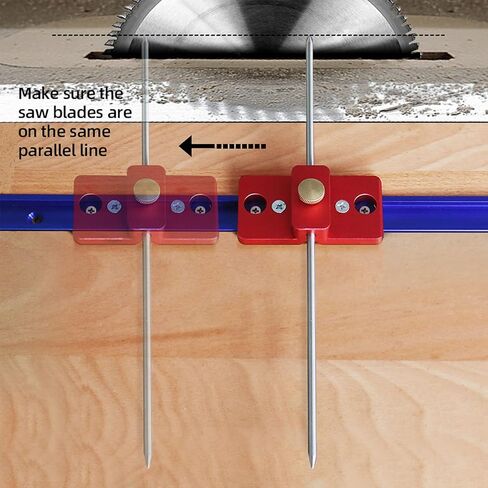

Use a Simple Set to check your saw blade to miter slot alignment. Just touch it off at the front of the blade and then check it at the back.

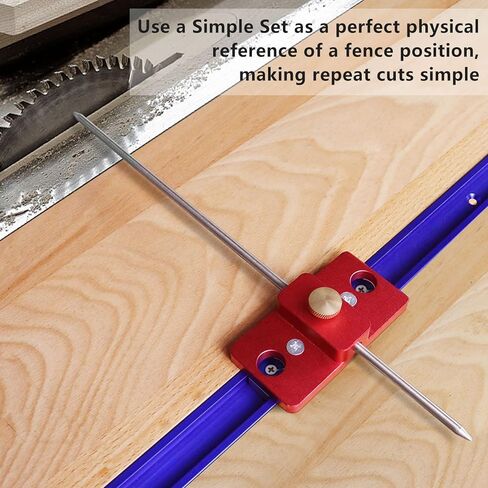

Use a Simple Set as a perfect physical reference to a fence position, making repeat cuts simple.

Specifications:
Body Material: Aluminum alloy
Pointer: Stainless steel
Color: Red

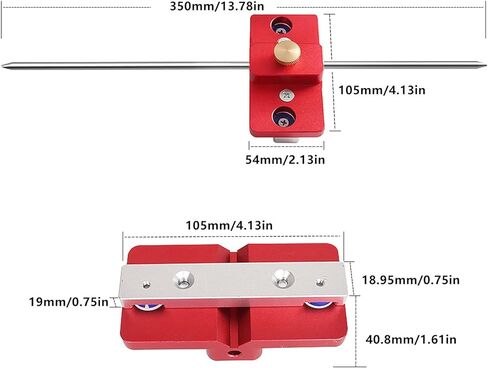

Precision Steel Pin Size: 350mm/13.78 inch
Fixed Block Size: 54x105mm/2.13x4.13 inch
Function: Table saw parallel positioning

Usage Steps:

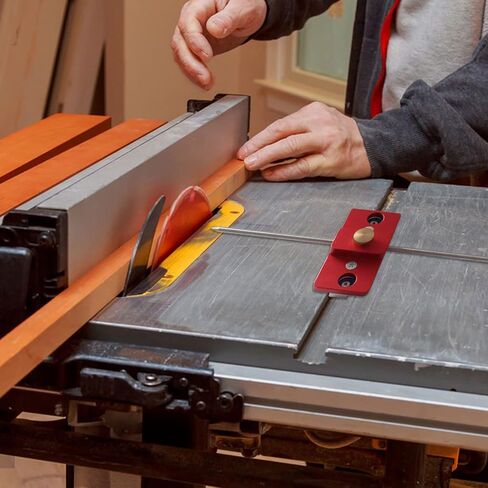

1. To either set or confirm the alignment of your fence to your table, slide a Simple Set into the miter slot near the front of the table, slide the probe over to the fence, lock it and make a mark on the fence where the probe touches.
2. Now move that Simple Set to the back of the table and install the second at the front. Adjust the second one to the witness mark you made on the fence and you have two points exactly the same distance from the miter slot, one at the front of your saw and one at the rear.
3. Adjust your fence until it perfectly aligns with both points and boom, you're done.

Package Includes:
1 x Precision Steel Pin
1 x Fixed Block

Notes:
Manual measurement, please allow slight errors on size.
The color may exist slight difference due to different screen displays.
