Collet Chuck, 100mm Diameter ER40 Collet Chuck, High Strength and Hardness, Durable Compact Lathe Tight Tolerance for CNC Milling Lathe Tool

KWD 17.500
Brand
BestParts
Weight
1.2 kg
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Size: outside diameter: 100mm(D1), registration diameter: 72mm(D), high: 42mm(L), the outside diameter of the collet chuck is 100 mm.
  • Concentricity: 0.0002", it can work with high accuracy and high stability.
  • Material: The collet chuck is made of durable carbon steel with strong oxidation resistance and high hardness.

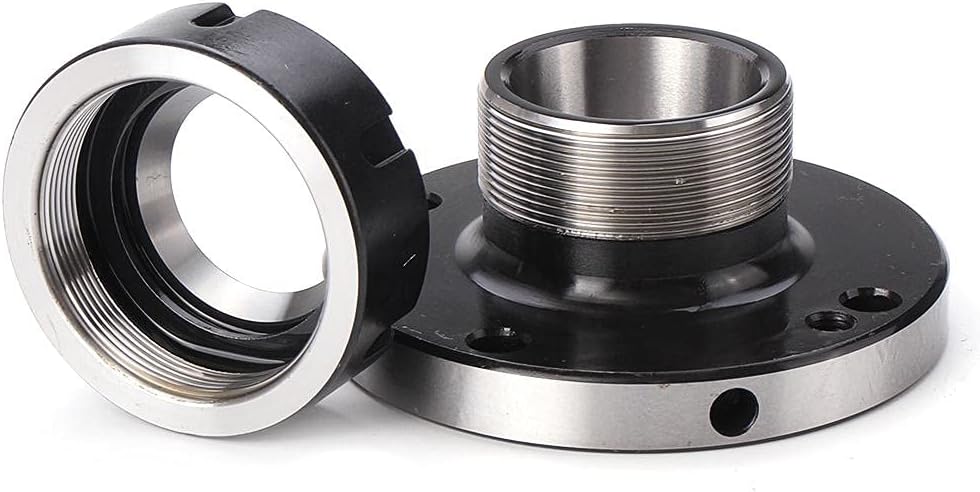

  • Installation: No complicated installation steps are required, you simply assemble the collet into the chuck nut before inserting the collet chuck.
  • Application: The collet chuck is mainly suitable for CNC milling machine, turning tool, engraving machine, milling machine, etc. You can attach the collet chuck to a backing plate of your choice for use on a lathe or as a fixture on a mill.

Description

Specification:
Brand new
Model: ER40
Material: High-carbon steel
Mount to your choice of backplate to use on a lathe
Can also be used as a fixture on a milling table
Concentricity: 0.0002"

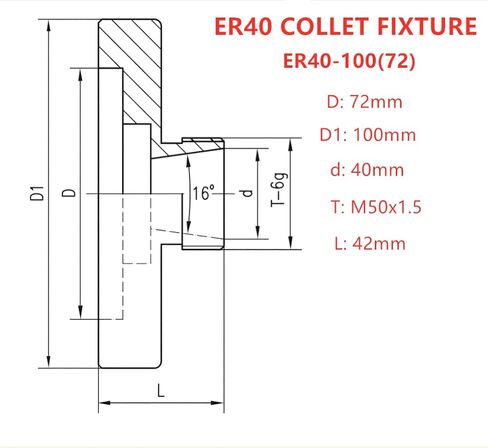

Outside diameter: 100mm(D1)
Registration diameter: 72mm(D)
High: 42mm(L)
The outside diameter of the collet chuck is 100 mm
Surface blackening treatment.
Compatible with: CNC Milling Lathe Tool Engraving Machine

Features:
Made of premium Carbon steel material, quenching hardness is 45-50HRC, with high strength and hardness,durable in use
Mount to your choice of backplate to use on a lathe.
Can also be used as a fixture on a milling table.
Standard production,a direct replacement of the broken one
Make your products processed better, more efficient, more durable.

Package included:
1 x 100mm Diameter ER40 Collect Chuck.
