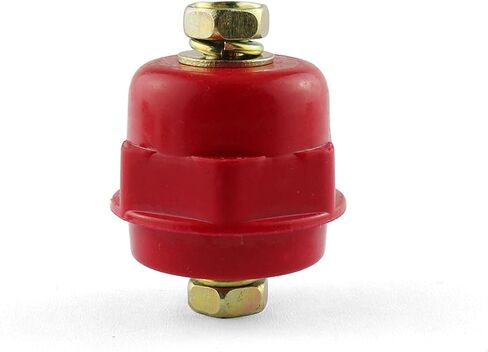

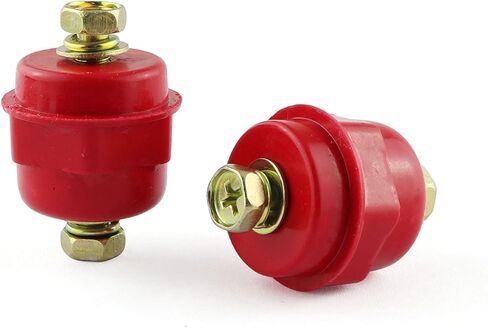

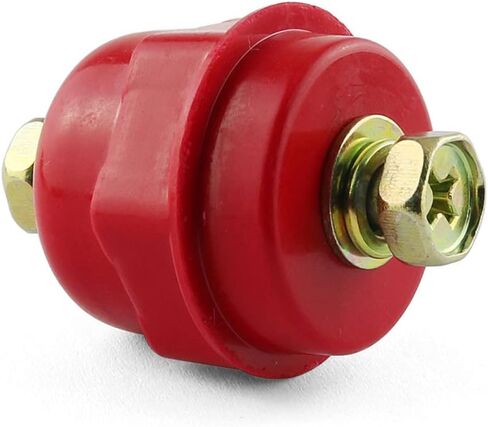

E-outstanding 5 Pcs Busba Insulator with Combined Screw, Red Resin Polyester Standoff Insulators, SM25xM6

KWD 4.500
Weight
200 g
– 1 +

Special Features

  • Made of high-quality epoxy resin that has good insulation and long service life.
  • Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance.
  • Model: SM-25; Nut size: M6; Material: epoxy resin; Packing: 5PCS.
  • Insulation resistance: 500M Ohm; working voltage: 600V; working temperature: -40 degrees Celsius to +140 degrees Celsius.
  • Widely used in high and low voltage power distribution cabinets. For power distribution, transmission, fixed copper-aluminum busbars, etc. It is used for cutting and connecting.

Description

specification::
Product name: Busbar insulator.
Model: SM-25
Material: epoxy resin.
Operating temperature: -40 degrees Celsius to +140 degrees Celsius.
Insulation resistance: 500M Ohm
Pulse voltage: 3000V
Working voltage: 600V.
Leakage current: less than 1mA (under 2000V operating voltage).
Nut material: copper
Nut size: M6
Screw hole depth: 9mm / 0.35 inch.
Axial stretching: 2000N.
Bend: 3000N.
Tightening torque: 10N/m.

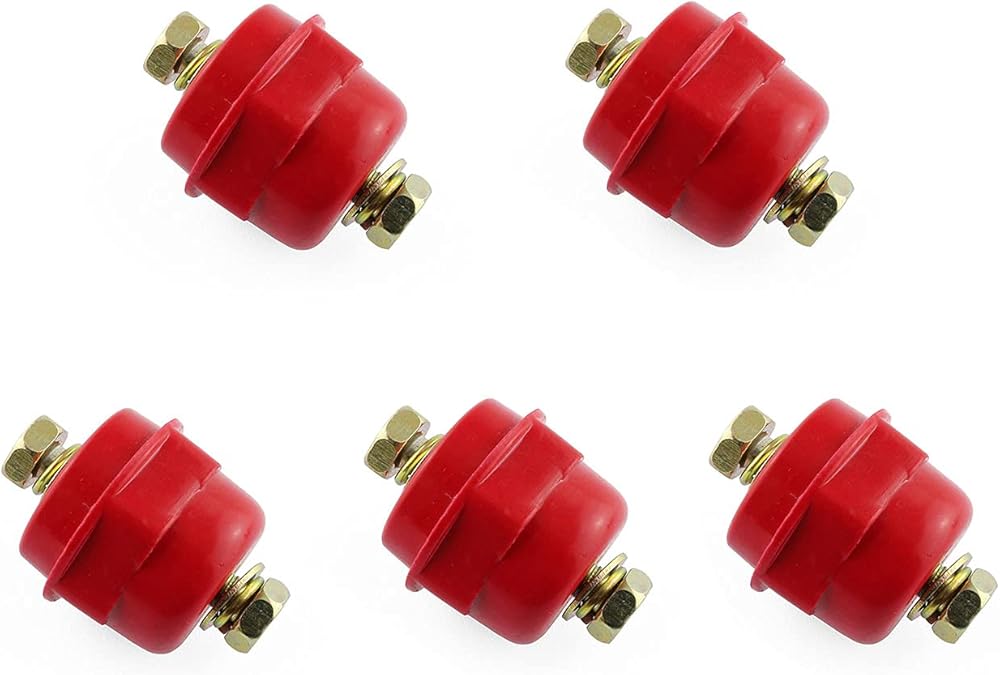

Package includes: 5PCS
