Product description

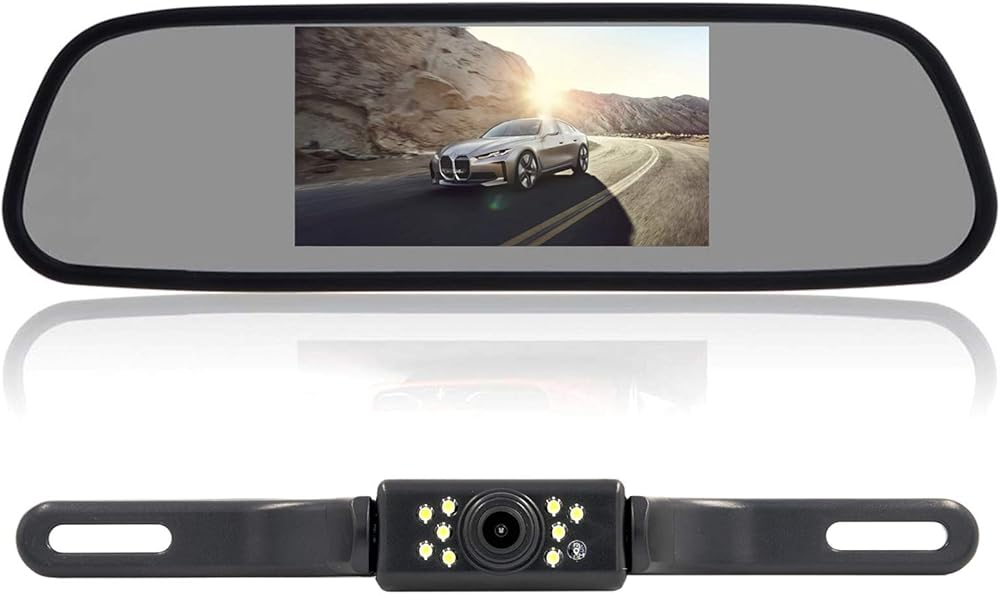

Backup Camera and Mirror Monitor Kit 4.3 Display Licence Plate Camera System
1.Meets FCC/CE/RoHS/ IP6X standards.
2.This is ideal for cars, trucks, SUVs, UTVs or any vehicle where you want to add a backup camera or see side/under vehicle.
3.Additional camera can be installed to monitor two positions (side/back).
4.Monitor viewing is HD color.
5.Camera is IP68 waterproof and has 7 LED lights for enhanced night capability.
6.System can be installed to turn on only when vehicle is in reverse, or wired for continuous viewing.

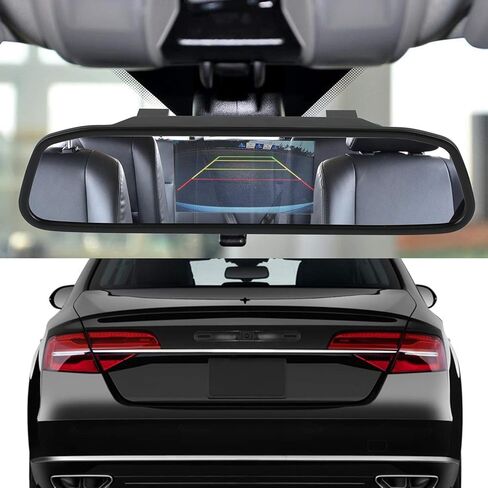

7.The Mirror monitor easy to hooked on vehicle original rear view mirror with Extendable clips.
8.We provide quality after-sales service if you have any questions. Just contact us.

4.3 Mirror Monitor
Specification:
-Displays: 4.3 inch (diagonal length)
-Resolution: 480 (W) × 272 (H)
-Ultra-low power consumption, to prevent over heat
-Signal format: PAL / NTSC. Compatible with all signal formats
-Rated Voltage: 9V - 35V,400mA-2A

Rear view Camera
Specification:
Image chip: 1/4 CMOS PC7080
Format: standard NTSC, PAL for the election
Effective pixels: PAL: 628 (H) x582 (V) NTSC: 510 (H) x 492 (V)
Minimum illumination: 0.5Lux
Lens: 1.8mm
SNR: 48dB or greater
Electronic Shutter Speed: 1/50 to 1/100, 000 seconds, 1/60 to 1/100, 000 seconds
Video Output: Composite video (1.0Vpp, 75ohm, RCA)
Current consumption: 90mA (about 130ma after IR on)
Power supply: 12V 1A (Do not use other specifications Power)
Operating ambient temperature: -20 to +70°C, 95% RH maximum
Storage temperature: -40 to + 100 °C, 95% RH maximum
Waterproof grade: IP68
Image Flip: left mirror phase
Size: suitable for almost all of the license plate
Scale line (about 0.5M-3M)
